#14 MORB X #12 FP SWIVEL 90*

Description & Features

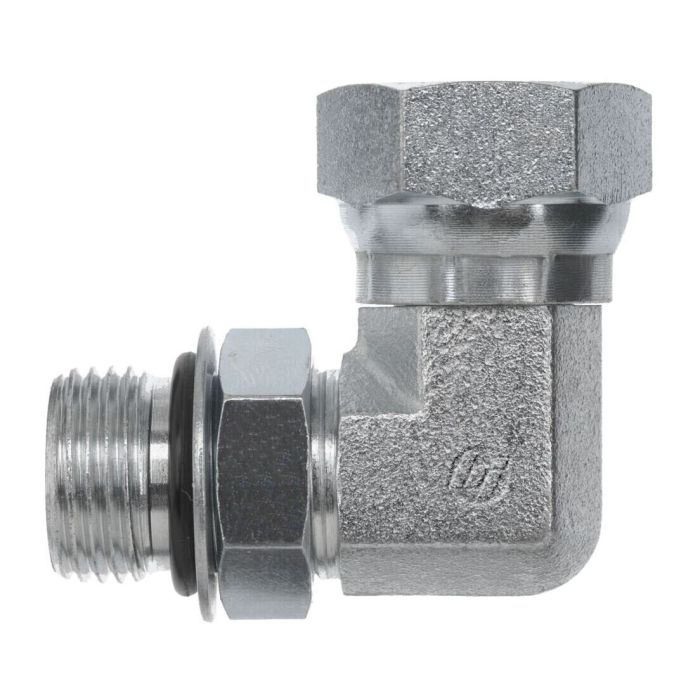

This forged steel 90-degree elbow features a #14 Male Adjustable O-Ring Boss (MORB) connection to a #12 Female NPSM Swivel. The #14 MORB X #12 FP SWIVEL 90* is manufactured to SAE J514 and SAE J476 standards.

With a centerline length of 2.000 inches and an overall length of 1.750 inches, this fitting is made from steel forging and includes an NBR O-ring seal.

SKU: 6901-14-12-NWO-FG

Supplier Part Number (MPN): 6901-14-12-NWO-FG

Alternate Part Numbers: 6901-14-12-NWO, C1DZ71

Specifications

Brand
BRENNAN
Connection Size 1
7/8 in
Connection Size 2
3/4 in
Connection Type
FNPSM Swivel, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
FNPSM Swivel
Dimension Standards
SAE J1926, SAE J514, SAE J476
Dimensions
3/4 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-3/8 x 1-1/4 in
l2 Dimensions
1.4 in
l Dimensions
1.75 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6901-NWO-FG Series
Thread 2 Drill Dimensions
0.62 in
Thread B1 Drill Dimensions
0.719 in
Thread Size
1-3/16-12 x 3/4-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
6901-04-04-NWO-FG

6901-04-04-NWO-FG

1/4 in

1/4 in

7/16-20, 1/4-18

6901-04-06-NWO-FG

6901-04-06-NWO-FG

1/4 in

3/8 in

7/16-20 x 3/8-18

6901-06-04-NWO-FG

6901-06-04-NWO-FG

3/8 in

1/4 in

1/4-18 x 9/16-18

6901-06-06-NWO-FG

6901-06-06-NWO-FG

3/8 in

3/8 in

3/8-18, 9/16-18

#6 MORB X #8 FP SWIVEL 90*

6901-06-08-NWO-FG

3/8 in

1/2 in

1/2-14 x 9/16-18

6901-08-06-NWO-FG

6901-08-06-NWO-FG

1/2 in

3/8 in

3/4-16 x 3/8-18

6901-08-08-NWO-FG

6901-08-08-NWO-FG

1/2 in

1/2 in

3/4-16 x 1/2-14

#8 MORB X #12 FP SWIVEL 90*

6901-08-12-NWO

1/2 in

3/4 in

3/4-16 x 3/4-14

#10 MORB X #4 FP SWIVEL 90*

6901-10-04-NWO-FG

5/8 in

1/4 in

7/8-14 x 1/4-18

#10 MORB X #6 FP SWIVEL 90*

6901-10-06-NWO-FG

5/8 in

3/8 in

7/8-14 x 3/8-18

10MAORB-08FPS 90 DEG ELBOW FORGED

6901-10-08-NWO-FG

5/8 in

1/2 in

1/2-14 x 7/8-14

ADAPTER

6901-12-06-NWO

3/4 in

3/8 in

1-1/16-12 x 3/8-18

#12 MORB X #8 FP SWIVEL 90

6901-12-08-NWO-FG

3/4 in

1/2 in

1-1/16-12 x 1/2-14

#16 MORB X #12 FP SWIVEL 90

6901-16-12-NWO-FG

1 in

3/4 in

3/4-14, 1-5/16-12

6901-16-16-NWO-FG

6901-16-16-NWO-FG

1 in

1 in

1-5/16-12 x 1-11-1/2 x 1-5/16-12

20MAORB-20FPS 90ELB FORG

6901-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-1/4-11-1/2, 1-5/8-12

32MAORB-32FPS 90 DEG ELBOW

6901-32-32

2 in

2 in

2-1/2-12 x 2-11-1/2

Product Questions & Answers (1)

Question by: Scott E on Sep 28, 2025, 4:00 PM
Can this 90 degree elbow handle hydraulic fluid okay?
Answer by: Customer Support on Sep 29, 2025, 5:04 PM
This fitting is manufactured from steel forging and includes an NBR O-ring seal, making it suitable for hydraulic applications.
