#16 MORB X #12 FP SWIVEL 90

Description & Features

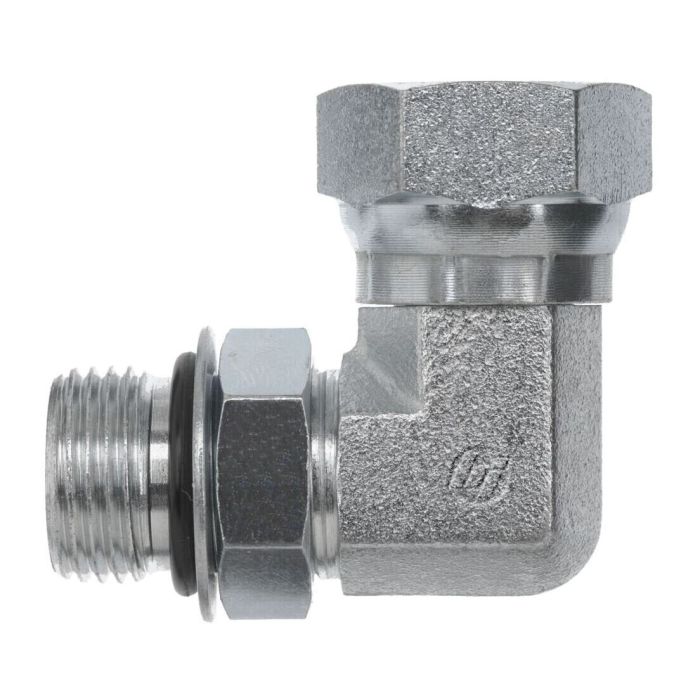

This steel forging is a #16 Male Adjustable O-Ring Boss (MORB) x #12 Female NPSM Swivel 90-degree elbow, designed for hydraulic applications.

It features a 1-5/16-12 Male SAE Adjustable O-Ring Boss thread (B1) according to SAE J514 standards, along with a 3/4-14 Female NPSM Swivel thread (B2) that meets SAE J476 specifications. The fitting's raw material is steel forging and incorporates an NBR O-ring seal.

SKU: 6901-16-12-NWO-FG

Alternate Part Numbers: 2068-12-16S, 6901-16-12-NWO, C1DZ72, MI-08579854, MINO-00028X08305

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
FNPSM Swivel, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
FNPSM Swivel
Dimension Standards
SAE J1926, SAE J514, SAE J476
Dimensions
3/4 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-1/2 x 1-1/4 in
l2 Dimensions
1.4 in
l Dimensions
1.75 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6901-NWO-FG Series
Thread 2 Drill
0.61 in, 0.63 in
Thread 2 Drill Dimensions
0.610/0.63 in
Thread B1 Drill Dimensions
0.844 in
Thread Size
3/4-14, 1-5/16-12

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
6901-04-04-NWO-FG

6901-04-04-NWO-FG

1/4 in

1/4 in

7/16-20, 1/4-18

6901-04-06-NWO-FG

6901-04-06-NWO-FG

1/4 in

3/8 in

7/16-20 x 3/8-18

6901-06-04-NWO-FG

6901-06-04-NWO-FG

3/8 in

1/4 in

1/4-18 x 9/16-18

6901-06-06-NWO-FG

6901-06-06-NWO-FG

3/8 in

3/8 in

3/8-18, 9/16-18

#6 MORB X #8 FP SWIVEL 90*

6901-06-08-NWO-FG

3/8 in

1/2 in

1/2-14 x 9/16-18

6901-08-06-NWO-FG

6901-08-06-NWO-FG

1/2 in

3/8 in

3/4-16 x 3/8-18

6901-08-08-NWO-FG

6901-08-08-NWO-FG

1/2 in

1/2 in

3/4-16 x 1/2-14

#8 MORB X #12 FP SWIVEL 90*

6901-08-12-NWO

1/2 in

3/4 in

3/4-16 x 3/4-14

#10 MORB X #4 FP SWIVEL 90*

6901-10-04-NWO-FG

5/8 in

1/4 in

7/8-14 x 1/4-18

#10 MORB X #6 FP SWIVEL 90*

6901-10-06-NWO-FG

5/8 in

3/8 in

7/8-14 x 3/8-18

10MAORB-08FPS 90 DEG ELBOW FORGED

6901-10-08-NWO-FG

5/8 in

1/2 in

1/2-14 x 7/8-14

ADAPTER

6901-12-06-NWO

3/4 in

3/8 in

1-1/16-12 x 3/8-18

#12 MORB X #8 FP SWIVEL 90

6901-12-08-NWO-FG

3/4 in

1/2 in

1-1/16-12 x 1/2-14

#14 MORB X #12 FP SWIVEL 90*

6901-14-12-NWO-FG

7/8 in

3/4 in

1-3/16-12 x 3/4-14

6901-16-16-NWO-FG

6901-16-16-NWO-FG

1 in

1 in

1-5/16-12 x 1-11-1/2 x 1-5/16-12

20MAORB-20FPS 90ELB FORG

6901-20-20-NWO-FG

1-1/4 in

1-1/4 in

1-1/4-11-1/2, 1-5/8-12

32MAORB-32FPS 90 DEG ELBOW

6901-32-32

2 in

2 in

2-1/2-12 x 2-11-1/2

Product Questions & Answers (1)

Question by: Jimmy R on Jul 1, 2025, 1:34 PM
What's the thread type on each end of this thing?
Answer by: Customer Support on Jul 3, 2025, 11:47 AM
On one end, you've got a 1-5/16-12 Male SAE Adjustable O-Ring Boss thread, meeting SAE J514 standards. The other end is a 3/4-14 Female NPSM Swivel thread, which meets SAE J476 specs.
