04MAORB-04FPS 45 ELB

Description & Features

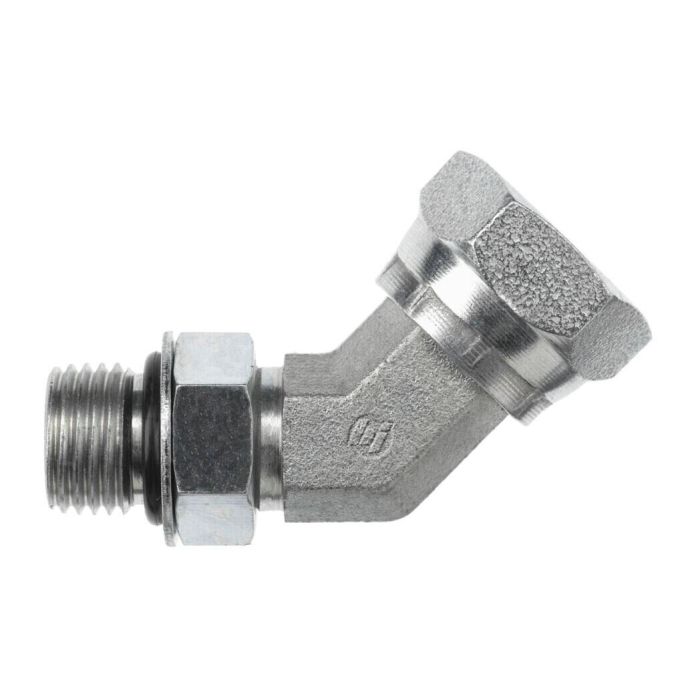

This forged steel 45-degree elbow features a male SAE adjustable O-ring boss thread (7/16-20) on one end and a female NPSM swivel thread (1/4-18) on the other. The 04MAORB-04FPS 45 ELB is constructed from high-quality steel forging for durability and reliability in demanding hydraulic applications.

The elbow centerline length 1 is 1.050 inches. It features an NBR O-ring seal material to ensure a leak-proof connection. This fitting conforms to SAE J514 and SAE J476 thread specifications.

SKU: 6902-04-04-NWO-FG

Supplier Part Number (MPN): 6902-04-04-NWO-FG

Specifications

Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type FNPSM Swivel, Male SAE ORB	Connection Type 1 Male SAE ORB	Connection Type 2 FNPSM Swivel	Dimension Standards SAE J1926, SAE J514, SAE J476	Dimensions 0.8 in L	Finish Trivalent Zinc-Plated	Fitting Type 45 deg Elbow	Hex Size 0.563 x 0.688 in	l2 Dimensions 0.61 in	l Dimensions 0.8 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 6902-NWO-FG Series	Thread 2 Drill Dimensions 0.22 in	Thread B1 Drill Dimensions 0.172 in	Thread Size 7/16-20, 1/4-18

Product Questions & Answers (1)

Question by: Dustin G on Mar 7, 2026, 3:21 PM

Will this fitting hold up okay in a hydraulic system on a log splitter? Figured forged steel is pretty strong.

Answer by: Customer Support on Mar 9, 2026, 6:23 AM

Forged steel construction gives this elbow good durability for demanding hydraulic jobs.
