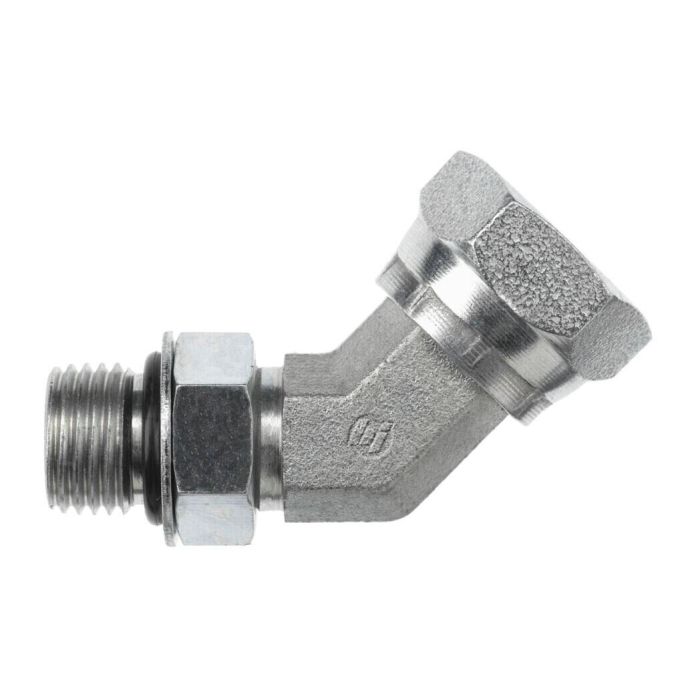

12MAORB-12FPS 45 DEG ELBOW

Description & Features

This 45-degree elbow by Brennan Industries Inc is engineered from high-quality steel forging ensuring optimal durability and strength. The product features a male SAE adjustable O-ring boss on one end specified under SAE J514 standards and a female NPSM swivel on the other end adhering to SAE J476 specifications.

Both hex ends have a measurement of 1.250 mm providing a secure fit. The elbow has an overall length of 1.370 mm and a centerline length of 1.730 mm. The O-ring seal is manufactured from NBR material known for its resistance to oil and abrasion.

The thread sizes include a B1 thread of 1-1/16-12 and a B2 thread size of 3/4-14 ensuring compatibility with standard fittings. The drilled thread dimensions are 0.609 mm for B1 and 0.61/.63 mm for B2 facilitating accurate connections.

Supplier Part Number: 6902-12-12-NWO-FG

MPN: 6902-12-12-NWO-FG

PROP-65 WARNING for California residents.

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6902-12-12-NWO-FG	Product Weight 0.99 lbs

Product Questions & Answers (3)

Question by: Melvin P on Jun 7, 2025, 7:01 AM

trying to swap out an elbow on my hose line, how do i know this one matches up?

Answer by: Customer Support on Jun 9, 2025, 6:06 AM

Match it by the thread types and sizes on each end. One side is a male SAE adjustable O-ring boss under SAE J514 with a 1-1/16-12 thread, and it seals with an NBR O-ring. The other side is a female NPSM swivel under SAE J476 with a 3/4-14 thread.

Question by: Scott M on Aug 21, 2025, 2:01 PM

Will this fitting hold up with hydraulic oil, or is it meant for something else?

Answer by: Customer Support on Aug 23, 2025, 6:01 AM

This 45-degree elbow uses an O-ring seal made from NBR material, which is known for its resistance to oil and abrasion.

Question by: Glen P on Nov 8, 2025, 11:02 AM

What kind of seal material does this elbow use, and will it hold up running hydraulic oil through it regular?

Answer by: Customer Support on Nov 9, 2025, 2:39 PM

NBR is the seal material on this one, which handles oil exposure real well and has solid resistance to abrasion too. For standard hydraulic oil applications, that's a reliable choice that holds up under regular working conditions.
