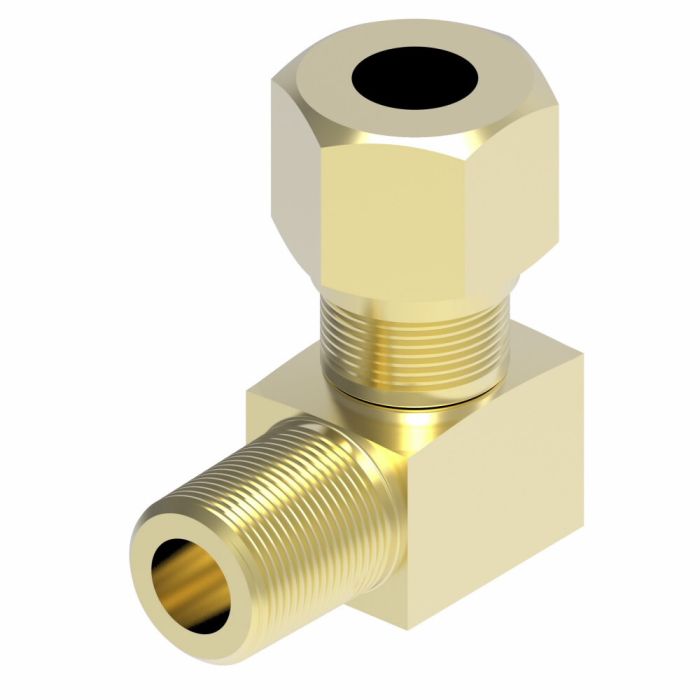

A 90° elbow adapter in brass construction, this fitting connects a 1/2 in. NPTF male thread to a 1/2 in. female line, hose, or tube end, making it a practical solution for directional changes in hydraulic and pneumatic instrumentation systems. The elbow configuration helps route lines efficiently where space or layout constraints require a right-angle transition.
The Danfoss / Eaton Brass Adapter carries Dura-Kote plating for corrosion resistance and is rated for operating pressures above SAE standards. A minimum working temperature of -65°F supports use in demanding low-temperature environments. With a 0.94 in. hex size and 1.310 in. drop dimension, the fitting is sized for straightforward installation with standard tooling.
SKU: 691X10
Supplier Part Number (MPN): 691X10
|
Alternate Part Numbers
MINO-00015X07527
|
Application
Instrumentation, hydraulic
and pneumatic systems. |
Drop Dimension
1.31
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.50
|
End Size 2
0.50
|
End Type 1
NPTF
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
0.94
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.94
|
Sub Brand
None
|
Supplier Part Number
691X10
|
Product Weight
0.30 lbs
|
