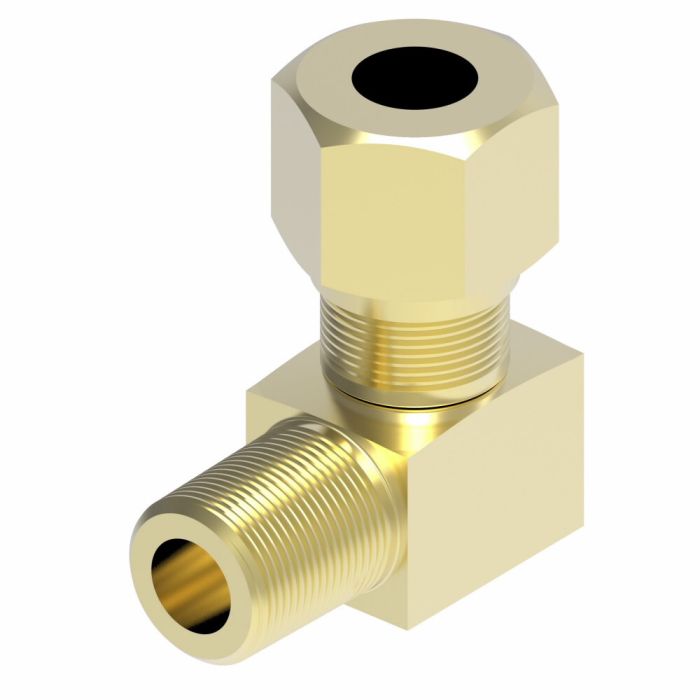

A brass 90° elbow adapter designed for instrumentation, hydraulic, and pneumatic systems, the Danfoss / Eaton Weatherhead 691X4 90° Male Elbow Male 7/16-24 Line/Hose/Tube Male 1/8-27 NPTF Brass connects a 1/8-27 NPTF male thread to a 7/16-24 male line/hose/tube end at a right angle. The brass construction provides reliable performance across a wide temperature range, rated down to -65°F minimum.
Part of Eaton Aeroquip's elbow adapter line, this fitting features Dura-Kote plating for corrosion resistance and is built to handle operating pressures above SAE standards. The 90° orientation makes it well suited for routing in space-constrained assemblies where a straight adapter would not fit. With a hex size of 0.500 in. on the line/hose/tube end, installation is straightforward with standard tooling.
SKU: 691X4
Supplier Part Number (MPN): 691X4
|
Alternate Part Numbers
MINO-00015X07531
|
Application
Instrumentation, hydraulic
and pneumatic systems. |
Drop Dimension
0.73
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.13
|
End Size 2
0.13
|
End Type 1
NPTF
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
0.50
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.50
|
Sub Brand
None
|
Supplier Part Number
691X4
|
Product Weight
0.06 lbs
|
