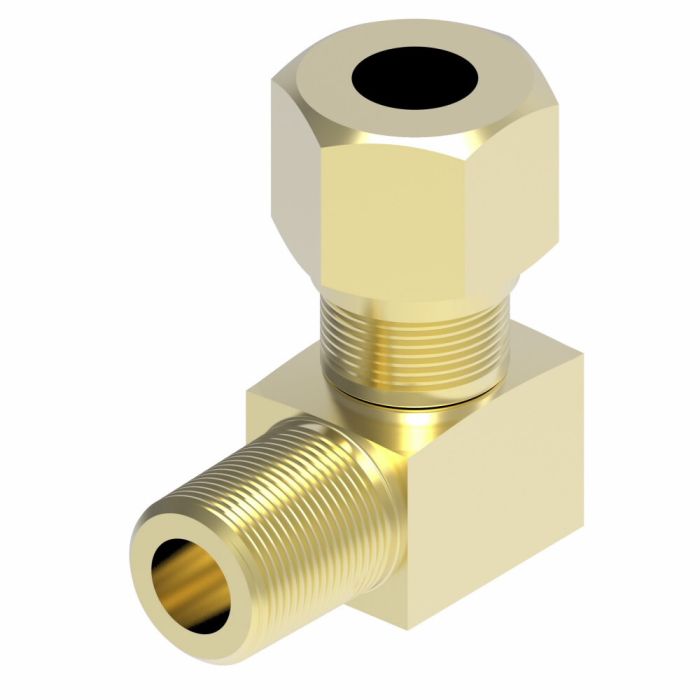

main product photo

90° Male Elbow

Ask A Question

Description & Features

Designed for use in instrumentation, hydraulic, and pneumatic systems, the 90° Male Elbow from Eaton Aeroquip provides reliable performance with its robust brass construction. Featuring Dura-Kote plating, this elbow offers superior corrosion resistance, making it ideal for challenging environments. This component supports design flexibility with hundreds of styles available, ensuring compatibility with a wide range of configurations.

The elbow adapter features a 0.375-inch NPTF male end and a 0.375-inch line/hose/tube female end, allowing for seamless integration into existing setups. With a drop dimension of 1.1200 and a hex size of 0.81, it meets higher operating pressures than standard SAE configurations. The minimum working temperature of -65°F further enhances its applicability in diverse conditions.

SKU: 691X8

Supplier Part Number (MPN): 691X8

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
MNPT, Tube
Connection Type 1
Tube OD
Connection Type 2
Male NPTF
Drop Dimensions
1.12 in
Fitting Type
90 deg Elbow
For Use With
Aluminum, Copper and Plastic Tubings
Hex Size
0.81 in
Material
Brass
Material Construction
Brass
nmfc
60
Segment Code
A
Series
691X Series

Product Questions & Answers (2)

Question by: Ray W on Apr 9, 2025, 12:45 PM
Will this fitting work for hooking up instrumentation lines?
Answer by: Customer Support on Apr 11, 2025, 7:33 AM
Yes, this Eaton Aeroquip adapter is applicable to instrumentation, hydraulic, and pneumatic systems.
Question by: Terry W on Jun 6, 2025, 7:53 PM
what's the thread type on the male end of this fitting, is it NPTF or just NPT?
Answer by: Customer Support on Jun 8, 2025, 6:47 AM
The male end is NPTF, which is the dry-seal version of the standard pipe thread. NPTF threads are cut to tighter tolerances than regular NPT, so they form a mechanical seal at the threads themselves without relying solely on tape or sealant. That matters in hydraulic and pneumatic lines where even a small seep can cause problems over time.
