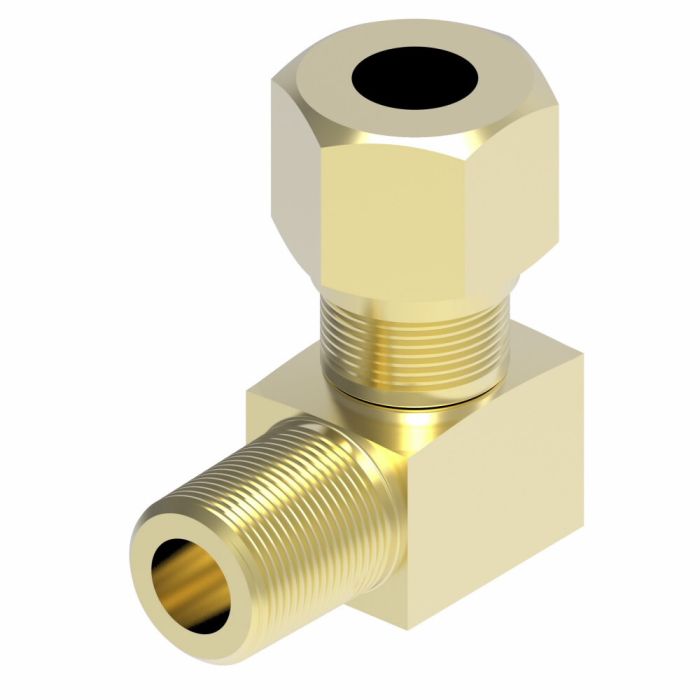

Designed for hydraulic and instrumentation systems, this 90° brass elbow adapter connects a 1/2 in. NPTF male thread to a 1/2 in. female line/hose/tube end, making it well-suited for routing fluid lines in confined or angled installations. The brass construction provides reliable durability across a wide range of operating conditions, with a minimum working temperature rating of -65°F.
The Danfoss / Eaton Brass Adapter features Dura-Kote plating for superior corrosion resistance and is rated for operating pressures above SAE standards. With a hex size of 0.81 in. and a drop dimension of 1.30 in., the fitting is sized for straightforward integration into existing hydraulic and pneumatic assemblies. Available as part of the Aeroquip line, this adapter is drawn from a broad range of elbow adapter styles, offering configuration flexibility across varied system layouts.
SKU: 691X8X8
Supplier Part Number (MPN): 691X8X8
|
Alternate Part Numbers
MINO-00015X07541
|
Application
Instrumentation, hydraulic
and pneumatic systems. |
Drop Dimension
1.30
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.50
|
End Size 2
0.50
|
End Type 1
NPTF
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
0.81
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.88
|
Sub Brand
None
|
Supplier Part Number
691X8X8
|
Product Weight
0.32 lbs
|
