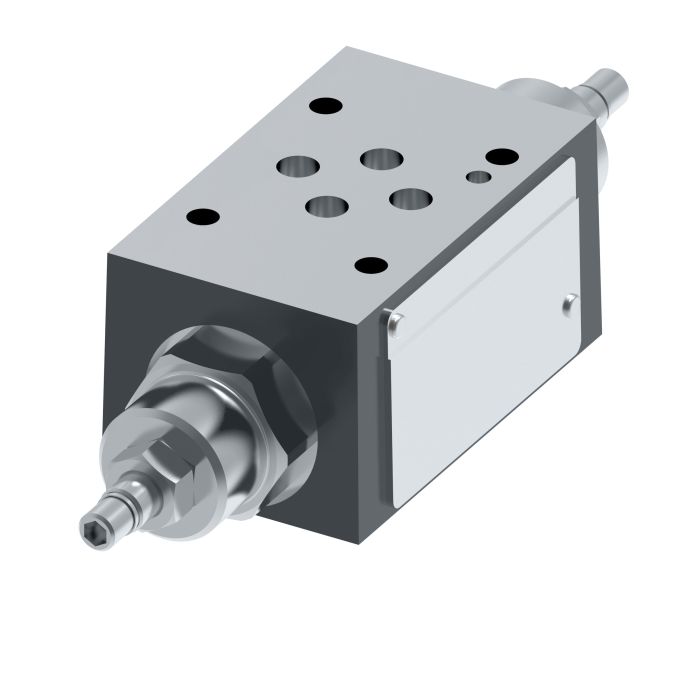

DGMFN-3-Y-A1W-B1W-40 VICK

Ask A Question

Description & Features

Designed for demanding industrial hydraulic circuits, the DGMFN-3-Y-A1W-B1W-40 Vickers SystemStak valve is a directional control valve built to reduce installation costs, eliminate external leakage, and boost resistance to contamination. The stacked valve design allows multiple functions to be integrated without the need for additional external connections between components.

With a flow rate of up to 60 litres per minute and nitrile seals as standard, this valve is well suited to a wide range of industrial environments. Typical applications include machine tool circuits, press systems, die casting and foundry equipment, marine and offshore installations, turbine control systems, and test and simulation equipment.

Manufactured by Eaton Vickers, now part of Danfoss Power Solutions, this valve carries the reliability expected from the Vickers product line and is a direct fit for compatible SystemStak assemblies.

SKU: 694411

Supplier Part Number (MPN): 694411

Alternate Part Numbers: C1EK25, DGMFN3YA1WB1W41

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Operated
Adjustment Type
Screw and Locknut
Control Type 1
Fine Control
Control Type 2
Fine Control
Design
41 Series
Dimensions
6.6 in L x 1.87 in W x 1.57 in H
Direction of Flow
Meter-Out Control
Location Control Function 1
Line A
Location Control Function 2
Line B
Media
Petroleum Oil
Mounting Type
Manifold, Subplate
Performance
Standard
Seal Material
FKM
Series
DGMFN-3 Series

Product Questions & Answers (1)

Question by: Cody C on Dec 3, 2025, 7:58 PM
Will this fit my Vickers DGMFN-3 valve setup, or are there different versions?
Answer by: Customer Support on Dec 5, 2025, 12:27 PM
Designed as part of the Vickers by Danfoss / Eaton DGMFN-3 SystemStak Valves, this should integrate directly with your existing setup.
