main product photo

Socket

Ask A Question

Description & Features

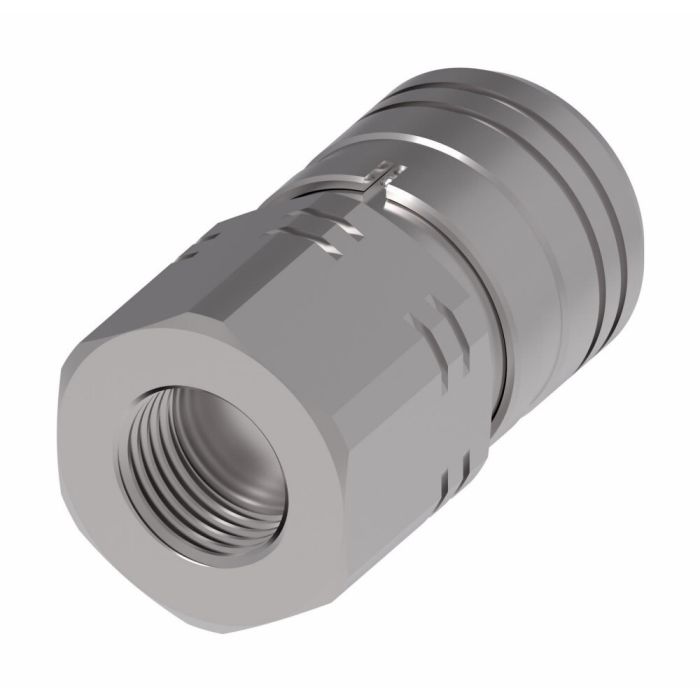

Part of the Eaton Hansen FF Series, this carbon steel Socket is a female half quick disconnect coupling designed for flat face internal connection. It accepts a 1/4" BSPP port connection and features a sleeve lock safety mechanism for secure engagement during use. The coupling operates across a wide temperature range with a minimum working temperature of -13°F, making it suitable for demanding outdoor and mobile environments.

Rated to exceed ISO 16028 operating pressures and carrying a torque rating of 46.1 lb/ft, this unit is built for reliable performance in hydraulic and fluid transfer applications. Typical installations include construction equipment, agricultural machinery, utility vehicles, on-highway vehicles, and stationary in-plant fluid transfer systems. At the 3/8" size, it is also interchangeable with HTMA couplings. NBR+AU seals are standard, and no special tools are required for connect or disconnect.

Compliant with the European Pressure Equipment Directive (PED) 97/23 EC Article 3.3, RoHS, and REACH standards.

SKU: 6FFS25BS

Supplier Part Number (MPN): 6FFS25BS

Specifications

Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
Certifications
ISO 16028
Compliances
European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3|RoHS Compliant|REACH
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 2
0.25
End Type 1
Push to Connect
End Type 2
BSPP
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
Flow Rate1
4.8 gallons per minute
ICC
Quick Disconnect Couplings
Internal Connection Type
Flat Face
Item Type
Female Half
Language
English
Minimum Working Temperature
-13
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.06
Safety locking Mechanism
Sleeve lock
Seal Material
NBR+AU
Sub Brand
Hansen
Supplier Part Number
6FFS25BS
Torque Rating
46.1 lb/ft
Torque Rating
46.1 lb/ft
Valve Type
2 way
Product Weight
0.32 lbs

Related Documents

Product Questions & Answers (3)

Question by: Hugh M on Feb 10, 2026, 2:28 PM
got a flat-face setup on a skid steer, is this the female half and does it lock so it aint coming loose?
Answer by: Customer Support on Feb 12, 2026, 7:57 AM
Built as the female half of a flat face quick disconnect, it uses a sleeve lock to help keep the connection secure once it is coupled.
Question by: Troy P on Apr 29, 2025, 10:23 AM
does this socket work with HTMA couplings or is it its own separate system?
Answer by: Customer Support on May 1, 2025, 6:43 AM
At the 3/8" size, it is interchangeable with HTMA couplings, so you can run it alongside existing HTMA setups without having to swap out your whole system. Outside of that size, that interchangeability is not listed, so stick to the 3/8" application if mixing the two is your goal.
Question by: Janet M on Apr 30, 2025, 4:12 PM
What kind of equipment is this socket typically used on?
Answer by: Customer Support on May 2, 2025, 10:39 AM
This Eaton/Hansen coupling socket finds common use in hydraulic and fluid transfer applications. You'll often see it on construction and agricultural equipment, utility vehicles, and even on-highway vehicles. It's also suitable for stationary in-plant hydraulic systems.
