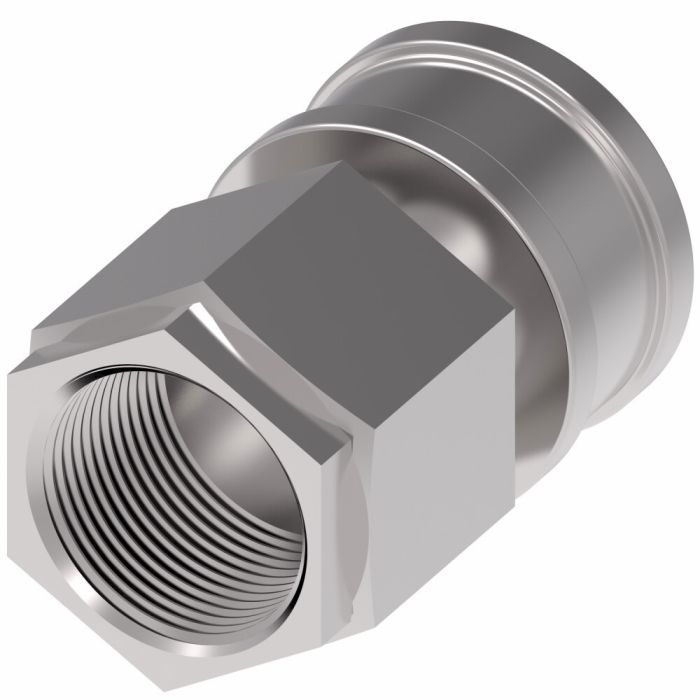

Designed for demanding fluid transfer across a wide range of industrial and mobile equipment environments, the Danfoss / Eaton Cplng HK Series is a female half quick disconnect coupling socket built around a ball lock internal connection mechanism. Constructed from carbon steel with Buna-N seals, it is rated for a minimum working temperature of -40°F and supports flow rates up to 26 gallons per minute.
Certified to ISO 7241-1 Series B and exceeding ISO 16028 operating pressures, this Push to Connect female socket connects via an SAE end on the opposite side and requires no special tools for coupling or release. The two-way valve configuration supports a broad set of applications, including agriculture, construction, oil and gas, aerospace, military, and general industrial fluid transfer. Manufactured under the Hansen sub-brand and produced at the Van Wert, Ohio facility, this coupling carries no safety locking mechanism, keeping connection and disconnection straightforward in field conditions.
SKU: 6HP12
Supplier Part Number (MPN): 6HP12
|
Alternate Part Numbers
MINO-00015X07582
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Type 1
Push to Connect
|
End Type 2
SAE
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
26 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
Carbon Steel
|
Product Width
2.22
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
6HP12
|
Valve Type
2 way
|
Product Weight
1.43 lbs
|
