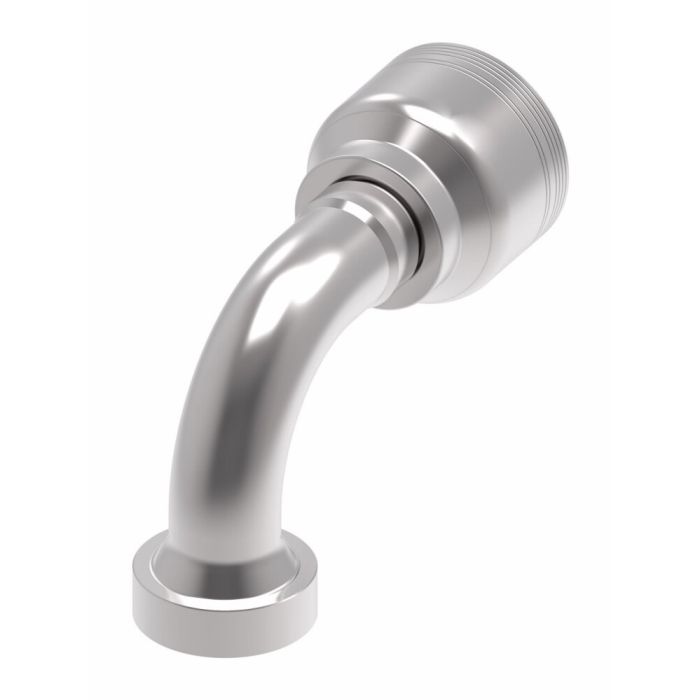

Designed for demanding high-pressure hydraulic applications, the Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting is a carbon steel, -16 dash size fitting assembly built to work with six-wire spiral hose configurations. The flanged end connects via a CAT-style flange, while the line/hose/tube end accommodates the mating hose assembly, making it well suited for heavy equipment and industrial hydraulic circuits requiring reliable, leak-free termination.
Dura-Kote plating provides corrosion resistance suited to harsh working environments. As part of Eaton Aeroquip's system-engineered 6S series, this fitting is designed to extend hose assembly service life and support maximum uptime in high-cycle applications. The fitting meets SAE J1176 certification and carries a package weight of approximately 1 lb. Drop dimension is 2.98 inches, with a product width of 2.34 inches.
SKU: 6S16CTB16
Supplier Part Number (MPN): 6S16CTB16
Alternate Part Numbers: MI-08511115, MINO-00925X00533
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-08511115, Alternate Part Number MINO-00015X07622, Alternate Part Number MINO-00925X00533
Certifications
SAE J1176
Drop Dimension
2.98
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-16
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
2.34
Sub Brand
None
Supplier Part Number
6S16CTB16
Product Weight
1.90 lbs
Product Questions & Answers (5)
Question by: Brent M on Nov 13, 2025, 6:01 AM
does this fitting work with a -16 hose on a CAT flange setup, or is it meant for somethin different?
Answer by: Customer Support on Nov 14, 2025, 1:58 PM
Built for exactly that combination. The 6S16CTB16 is a -16 dash size crimp fitting with a CAT flange end and a 90 degree elbow configuration, so it connects a spiral hose assembly to a CAT flange port at an angle. If your hose end is -16 and your port is a CAT flange, this is the right fit.
Question by: Daryl H on Nov 4, 2025, 11:19 AM
got a -16 hose and need a 90 with a cat flange, is this the right style fitting?
Answer by: Customer Support on Nov 5, 2025, 1:57 PM
For a -16 dash hose, this one matches that hose size and it is a 90 degree CAT flange crimp fitting in the Danfoss Eaton Aeroquip 6S series.
Question by: Ray H on Mar 12, 2026, 7:21 AM
Will this fitting hold up to the pressures in a hydraulic system on heavy equipment?
Answer by: Customer Support on Mar 13, 2026, 10:14 AM
Designed for systems using 6-wire spiral hose, this fitting offers robust performance and extends the life of your hose assembly, contributing to maximum uptime.
Question by: Wayne B on Apr 4, 2025, 12:50 PM
got a -16 hose, is this one the right dash size for it?
Answer by: Customer Support on Apr 6, 2025, 6:19 AM
The hose dash size on this fitting is -16, so it matches a -16 hose size.
Question by: Glen W on Sep 6, 2025, 3:01 PM
does this fitting work with 6-wire spiral hose or is it only for certain types
Answer by: Customer Support on Sep 8, 2025, 6:05 AM
Built for 6-wire spiral hose assemblies, this is a -16 dash size CAT flange fitting with a 90-degree elbow configuration. The flanged end connects on one side and the crimp end attaches to the hose on the other. As long as you're working with the right hose series and dash size, it's a solid match for heavy-duty spiral hose applications.
