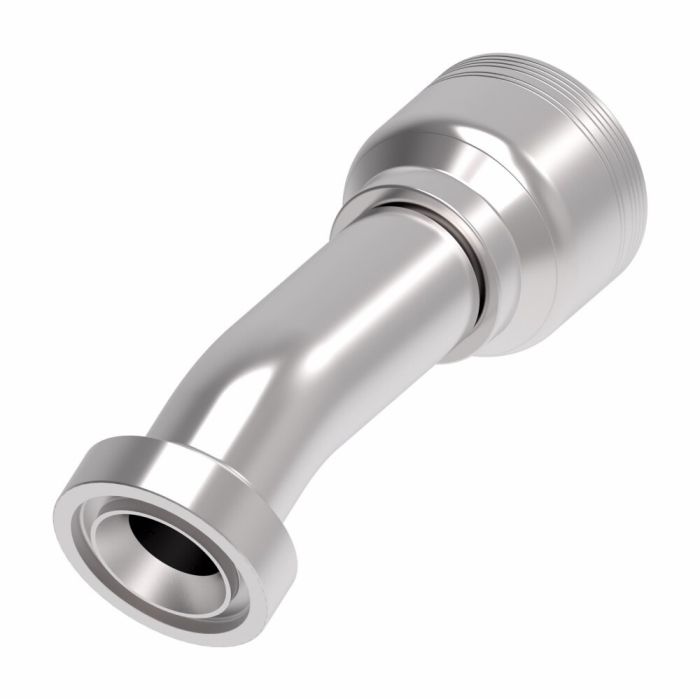

Designed for high-pressure hydraulic hose assemblies, this carbon steel Cat Flange 22.5° fitting is part of Eaton Aeroquip's 6S Series crimp fitting system, engineered for compatibility with 6-wire spiral hose in a -16 dash size. The 22.5° elbow geometry suits routing situations where tighter angular transitions are required between a flanged port connection and the hose line.
Dura-Kote plating provides corrosion resistance suited to demanding industrial environments. The flanged end type meets SAE J1176 certification, supporting reliable sealing at the port interface. At approximately 1 lb, the fitting is a compact assembly component with a product width of 2.34 inches and a drop dimension of 0.60 inches. The system-engineered design is intended to extend hose assembly service life and support maximum uptime in critical hydraulic circuits.
SKU: 6S16CTD16
Supplier Part Number (MPN): 6S16CTD16
|
Alternate Part Numbers
MINO-00015X07623
|
Certifications
SAE J1176
|
Drop Dimension
0.60
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-16
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
2.34
|
Sub Brand
None
|
Supplier Part Number
6S16CTD16
|
Product Weight
1.80 lbs
|
