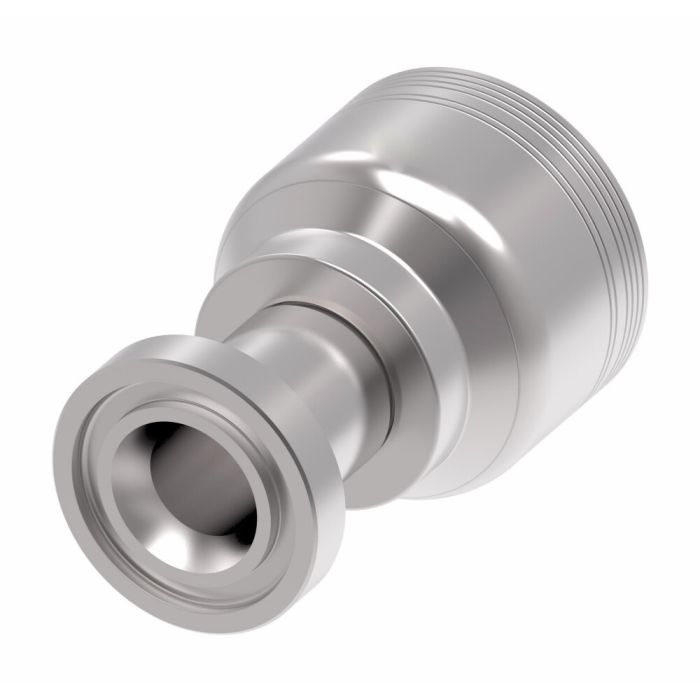

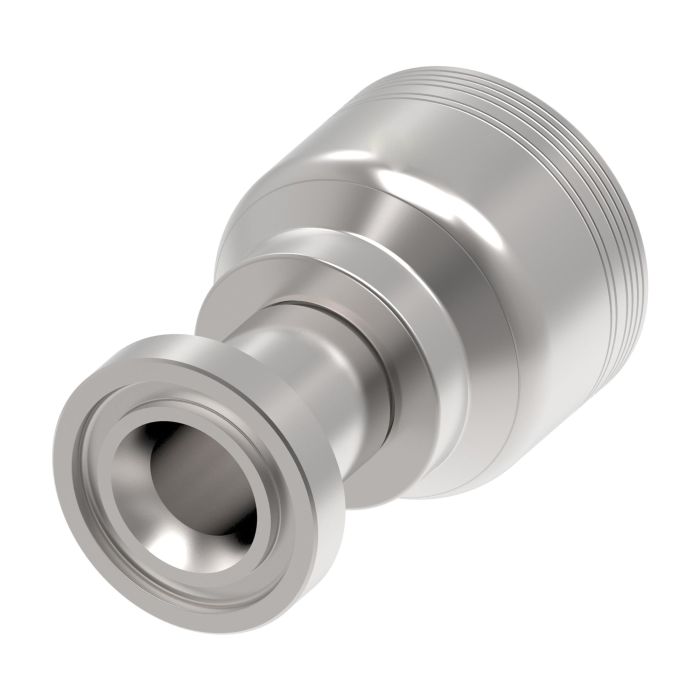

Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting

Description & Features

This Eaton Aeroquip 6-Wire Spiral TTC Fitting features a flanged end type 1 and a line/hose/tube end type 2. Constructed from carbon steel, this fitting assembly is suitable for hydraulic applications requiring a secure and durable connection.

The Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting is engineered with Dura-Kote plating, providing superior corrosion resistance and extending hose assembly life. Its innovative design ensures reliable performance and maximum uptime.

SKU: 6S16FH16

Supplier Part Number (MPN): 6S16FH16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.89 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 62 Flange	Construction Style Crimp	Cut-Off Factor 2.33 in	Dimension Standards SAE J1176	Dimensions 3.89 in L	End Connection Torque 96 to 111 lb-ft	End Size 1 16	Finish Dura-Kote™	Fitting Type 110 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code C	Series 6S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Tony W on May 21, 2025, 4:12 PM

does this fitting work with 6-wire spiral hose on a -16 dash size connection, or is it only for certain hose types

Answer by: Customer Support on May 23, 2025, 6:57 AM

Built specifically for 6-wire spiral hose assemblies, this fitting matches a -16 dash size and uses a SAE Code 62 flange configuration on one end with a line/hose/tube end on the other. So yes, if you're running -16 spiral hose and need a flanged termination, this is the right fit.
