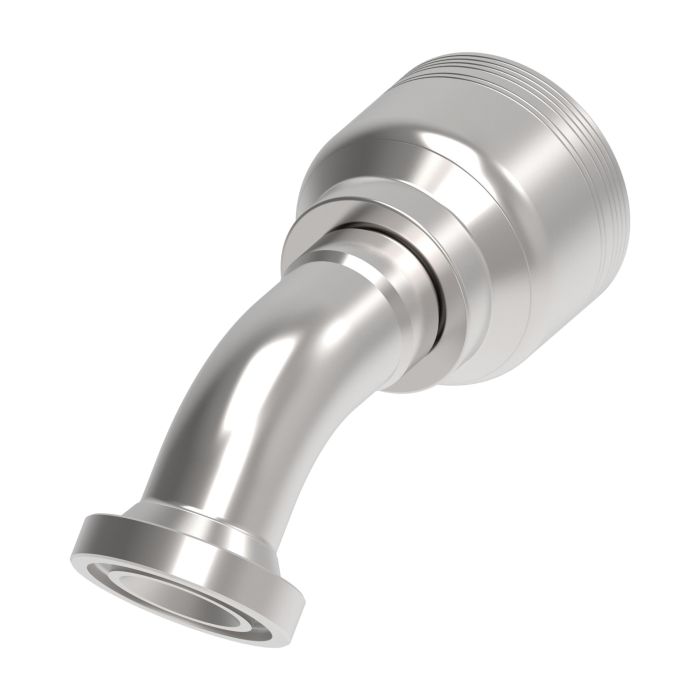

Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting

Description & Features

Designed for high-pressure hydraulic hose assemblies, the Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting is a carbon steel crimp fitting configured as a SAE Code 62 flange with a 45-degree elbow orientation. The -16 hose dash size and flanged end type make it suited for larger-diameter spiral hose applications where secure, leak-resistant connections are critical to system performance and uptime.

Finished with Dura-Kote plating, this fitting provides superior corrosion resistance in demanding industrial environments. The design is system-engineered to extend hose assembly service life, and it meets SAE J1176 certification requirements. Constructed as a complete fitting assembly and sold individually, it integrates reliably into 6-wire spiral hose configurations where durability and long service intervals are priorities.

SKU: 6S16FHA16

Supplier Part Number (MPN): 6S16FHA16

Alternate Part Numbers: MI-08511117, MINO-00925X00535

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5.15 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 62 Flange	Construction Style Crimp	Cut-Off Factor 3.59 in	Dimension Standards SAE J1176	Dimensions 6.09 in L x 2.34 in W x 3.37 in H	Drop Dimensions 1.26 in	End Size 1 16	Finish Protective Oil	Fitting Type 45 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code C	Series 6S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Phil R on Jul 31, 2025, 7:52 AM

Reckon this fitting would hold up okay on some hydraulic lines for farm equipment? Gets pretty dusty and dirty out here.

Answer by: Customer Support on Aug 2, 2025, 7:14 AM

Dura-Kote plating gives this Eaton Aeroquip fitting some serious corrosion resistance. That should help it stand up to the dirt and dust you find on a farm.

Question by: Daryl H on Apr 4, 2025, 6:43 PM

got a 6-wire spiral hose that needs a SAE code 62 flange fitting on one end with a 45 elbow, dash 16 size. this the right part?

Answer by: Customer Support on Apr 6, 2025, 4:20 PM

that lines right up. The 6S16FHA16 is a dash-16 fitting with a SAE Code 62 flange on one end and a 45-degree elbow configuration, built specifically for 6-wire spiral hose. Carbon steel construction with Dura-Kote plating, so corrosion resistance is solid for demanding environments. Should be exactly what you're after.
