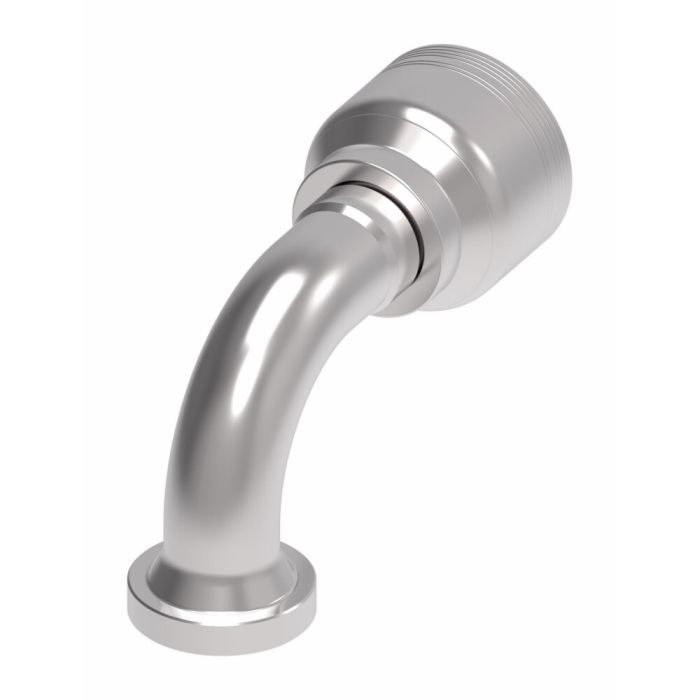

Designed for robust hydraulic systems, the Eaton Aeroquip 6-Wire Spiral TTC Fitting offers superior performance and longevity. Its Dura-Kote plating enhances corrosion resistance, ensuring durability in demanding environments. The fitting features a 90-degree SAE Code 62 flange elbow, providing seamless integration with diverse hydraulic assemblies. Constructed from carbon steel, it ensures strength and reliability under high-pressure conditions.
Certified to SAE J1176 standards, this fitting is engineered to extend the life of hose assemblies, minimizing maintenance and downtime. With a hose dash size of -16, it is suitable for a range of industrial applications. The fitting's innovative design promotes maximum uptime, making it an essential component for efficient hydraulic use.
SKU: 6S16FHB16
Supplier Part Number (MPN): 6S16FHB16
Alternate Part Numbers: MI-08511118, MINO-00925X00536
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-08511118, Alternate Part Number MINO-00015X01762, Alternate Part Number MINO-00925X00536
Certifications
SAE J1176
Drop Dimension
2.80
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-16
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
2.34
Sub Brand
None
Supplier Part Number
6S16FHB16
Product Weight
1.90 lbs
Product Questions & Answers (6)
Question by: Norm H on Nov 16, 2025, 7:52 AM
got a -16 hose on the truck, is this the right dash size fitting for it?
Answer by: Customer Support on Nov 18, 2025, 6:59 AM
On sizing, this one is a -16 hose dash size fitting, so it matches a -16 hose size callout.
Question by: Duane E on May 29, 2025, 6:29 PM
does this fitting work with 6-wire spiral hose or just certain types of spiral assemblies?
Answer by: Customer Support on May 31, 2025, 6:21 AM
Built specifically for 6-wire spiral hose assemblies, this carbon steel fitting is part of a system-engineered approach meant to extend the working life of the full hose assembly. The TTC design and Dura-Kote plating work together to hold up under the demanding conditions that high-pressure spiral hose applications typically involve. As long as you're pairing it with the correct -16 dash size hose, it's the right fit for that class of assembly.
Question by: Bonnie W on Jan 19, 2026, 10:36 AM
Will this fitting hold up to the pressures on a 6-wire spiral hose?
Answer by: Customer Support on Jan 20, 2026, 12:11 PM
Dura-Kote plating gives this fitting superior corrosion resistance, and the system's engineered design extends hose assembly life, even with the demands of 6-wire spiral hose.
Question by: Melvin H on Jun 24, 2025, 8:57 AM
Will this fitting work with any old hose, or does it need to be a specific type?
Answer by: Customer Support on Jun 25, 2025, 3:49 PM
It's designed for use with 6-wire spiral hoses, ensuring a secure and reliable connection.
Question by: Stan H on Jun 13, 2025, 1:13 PM
does this fitting work with 6-wire spiral hose on a -16 dash size connection, or is it meant for something different?
Answer by: Customer Support on Jun 15, 2025, 6:41 AM
That's what it's built for. The 6S16FHB16 is part of Eaton Aeroquip's 6S crimp fitting series and it's sized for -16 hose with a 6-wire spiral construction. The flange end is SAE Code 62, and it comes out at a 90-degree elbow, so if you're working a tight routing situation where a straight fitting won't clear, this one gives you that angle without having to add extra adapters in the line.
Question by: Judy F on Apr 19, 2025, 12:08 PM
got a 6S16FHB16 in my hand, what kind of end is it and what’s it meant to hook up to
Answer by: Customer Support on Apr 21, 2025, 6:32 AM
On the equipment side it uses an SAE Code 62 flange, and it’s a 90 degree elbow style. The other end is the line or hose or tube connection side, and it’s part of Eaton Aeroquip’s 6S Series crimp hose fitting family for 6-wire spiral hose assemblies.
