Danfoss / Eaton Aeroquip 6 -Wire Spiral TTC FITTIN

Description & Features

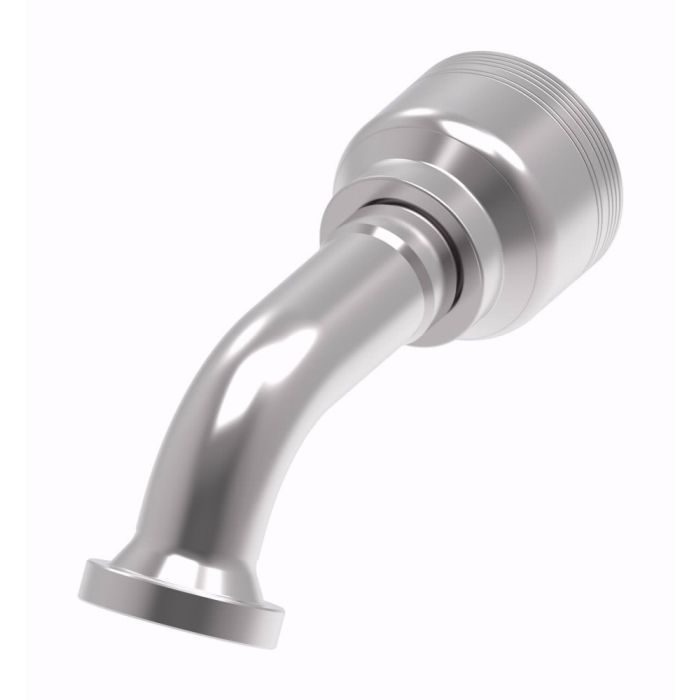

Designed for high-pressure 6-wire spiral hose assemblies, the Danfoss / Eaton Aeroquip 6S16FHG16 is a carbon steel crimp fitting configured with a SAE Code 62 flange end and a 60-degree elbow orientation. The -16 hose dash size suits larger-diameter hydraulic lines where robust flow capacity and secure termination are required. Construction meets SAE J1176 certification, confirming compliance with recognized industry standards for this fitting type.

Dura-Kote plating provides corrosion resistance suited to demanding hydraulic environments. The fitting is system-engineered as part of the Aeroquip 6S series, a design approach intended to extend hose assembly service life and support consistent uptime under sustained pressure cycles. With a flanged end type on one side and a line/hose/tube connection on the other, this assembly integrates directly into SAE Code 62 flange-ported circuits.

SKU: 6S16FHG16

Supplier Part Number (MPN): 6S16FHG16

Alternate Part Numbers: MI-08734677, MINO-00925X97002

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 6.16 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 62 Flange	Construction Style Crimp	Cut-Off Factor 4.59 in	Dimension Standards SAE J1176	Drop Dimensions 1.76 in	End Connection Torque 96 to 111 lb-ft	End Size 1 16	Finish Dura-Kote™	Fitting Type 60 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code C	Series 6S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Jimmy C on Jun 13, 2025, 10:34 AM

What's the Dura-Kote plating for?

Answer by: Customer Support on Jun 15, 2025, 10:24 AM

The Dura-Kote plating gives this fitting better corrosion resistance, which is important in hydraulic systems where things can get pretty harsh.
