The Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting delivers exceptional performance and reliability. Engineered with Dura-Kote plating, it offers excellent corrosion resistance, ensuring long-lasting durability in challenging environments. This innovative design is specifically tailored to enhance performance and uptime, making it ideal for industrial applications.

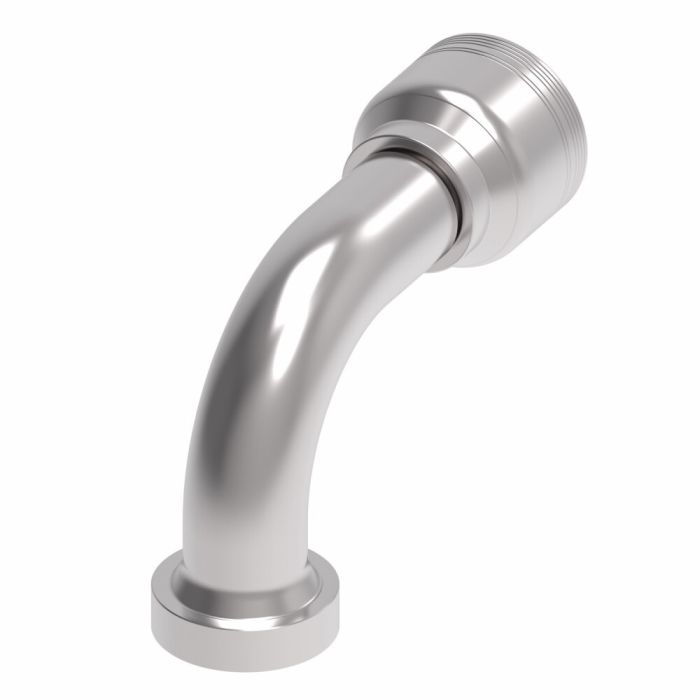

The product features a 90-degree CAT flange elbow, part of the Danfoss / Eaton 6S Series Crimp Hose Fittings. It is constructed from high-quality carbon steel, ensuring robustness and longevity. The flange end type is designed to securely connect with various hoses, tubes, and lines, with a hose dash size of -16 to accommodate different requirements.
The fitting is certified to SAE J1176 standards, affirming its quality and reliability. With a drop dimension of 3.6600 and a product width of 2.34, it seamlessly integrates into complex hydraulic systems, providing a reliable connection point.
Supplier Part Number: 6S20CTB16
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-08734692, Alternate Part Number MINO-00015X07638, Alternate Part Number MINO-00925X97007
Certifications
SAE J1176
Drop Dimension
3.66
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-16
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
2.34
Sub Brand
None
Supplier Part Number
6S20CTB16
Product Weight
2.80 lbs
Product Questions & Answers (3)
Question by: Hugh M on Jun 4, 2025, 2:40 PM
What kind of corrosion resistance can I expect from this fitting?
Answer by: Customer Support on Jun 6, 2025, 6:29 AM
Dura-Kote plating provides superior corrosion resistance, which helps extend the life of your hose assembly.
Question by: Marvin B on Jul 11, 2025, 6:56 PM
trying to match up a replacement, is 6S20CTB16 the 90 degree CAT flange elbow for a -16 hose?
Answer by: Customer Support on Jul 13, 2025, 6:51 AM
For fit confirmation, 6S20CTB16 is a Danfoss Power Solutions Aeroquip 6S Series crimp hose fitting built as a CAT flange 90 elbow, and it is listed with a hose dash size of -16.
Question by: Janet B on May 13, 2025, 9:24 AM
got a -16 hose, will this 6S20CTB16 fitting match up or am i mixin up sizes
Answer by: Customer Support on May 14, 2025, 12:14 PM
The key callout is the hose dash size. This fitting is a 6S Series crimp hose fitting with a hose dash size of -16, so it matches a -16 hose size in that series.
