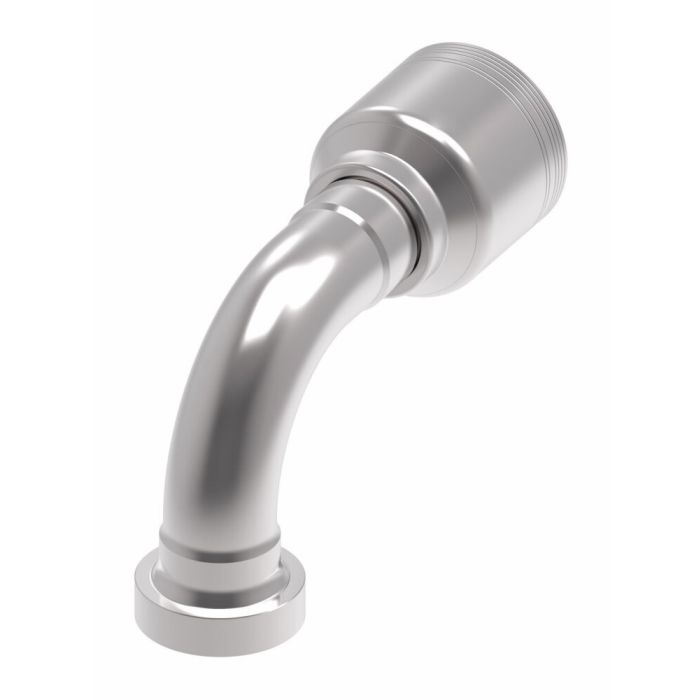

Designed for efficient and reliable performance, the Danfoss / Eaton 6S Series Crimp Hose Fittings CAT Flange 90 Elbow provides a robust solution for demanding industrial applications. Engineered from high-quality carbon steel, these fittings offer strength and durability, ensuring a long lifespan and reduced maintenance.
The innovative design includes Dura-Kote plating for superior corrosion resistance, enhancing the product's longevity and reliability. The 90-degree elbow configuration allows for versatile hose assembly layouts, optimizing space and functionality in diverse setups.
Certified to SAE J1176 standards, this fitting guarantees compliance and performance in specialized industrial environments. With a hose dash size of -20 and flanged end types, it ensures a secure and reliable connection for critical applications.
Maximize uptime and extend hose assembly life with this precisely engineered component, ideal for various technical needs in professional settings. Suitable for use in systems requiring robust and adaptable hose fittings, it is designed to meet stringent operational requirements.
MPN: 6S20CTB20
Supplier Part Number: 6S20CTB20
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-07223258, Alternate Part Number MINO-00015X07639, Alternate Part Number MINO-00925F19965
Certifications
SAE J1176
Drop Dimension
3.66
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-20
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
2.61
Sub Brand
None
Supplier Part Number
6S20CTB20
Product Weight
3.02 lbs
Product Questions & Answers (4)
Question by: Roy B on Mar 23, 2026, 8:05 AM
trying to match up a crimp fitting for a -20 hose, is this one meant for that dash size?
Answer by: Customer Support on Mar 25, 2026, 6:40 AM
Hose fit is the straightforward part here. The hose dash size on this fitting is -20, and it’s a 6S Series crimp hose fitting for 6-wire spiral TTC assemblies.
Question by: Rex W on Aug 19, 2025, 12:04 PM
Will this fitting work with any old hose, or does it need a specific type?
Answer by: Customer Support on Aug 20, 2025, 12:17 PM
Dura-Kote plating helps this fitting resist corrosion, while its system engineering is designed to extend the life of your hose assembly. It's best suited for use with 6-wire spiral hoses.
Question by: Bonnie B on Dec 4, 2025, 7:25 AM
fitting's got a -20 hose dash size on it, does that line up with standard 6-wire spiral hose assemblies for that size range?
Answer by: Customer Support on Dec 6, 2025, 6:25 AM
Carbon steel construction and the 6S series crimp design are both built around compatibility with 6-wire spiral hose in the -20 dash size. The flanged end on one side pairs with a line or hose connection on the other, so it fits right into assemblies where you've got a CAT-style flange port and need to route hose away at a 90-degree angle. Just confirm your hose end matches the -20 specification before crimping.
Question by: Daryl R on Sep 8, 2025, 8:34 AM
What size hose does this fitting work with? Just want to make sure I get the right one.
Answer by: Customer Support on Sep 10, 2025, 6:19 AM
This fitting is made for a hose with a dash size of -20.
