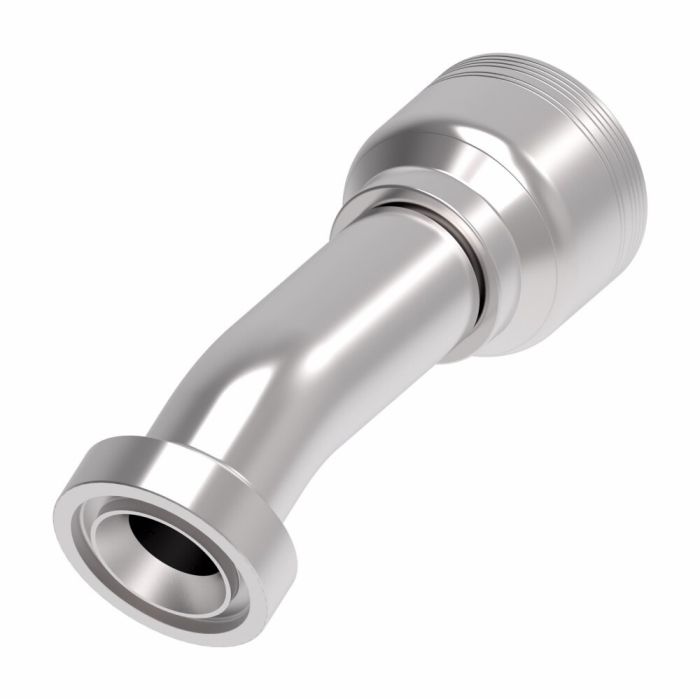

Designed for high-pressure hydraulic hose assemblies, the Cat Flange 22.5° is a carbon steel crimp fitting from Eaton Aeroquip's 6S Series, built to SAE J1176 standards. It features a flanged end on one side and a hose/line connection on the other, making it well suited for -16 dash size applications where a precise 22.5-degree offset is required at the connection point.
Dura-Kote plating provides corrosion resistance across demanding service environments, while the fitting's system-engineered construction is intended to extend overall hose assembly service life. The 6S Series design supports maximum uptime by maintaining consistent performance under load, a practical consideration for hydraulic circuits where fitting reliability directly affects system continuity.
SKU: 6S20CTD16
Supplier Part Number (MPN): 6S20CTD16
|
Alternate Part Numbers
MINO-00015X07640
|
Certifications
SAE J1176
|
Drop Dimension
0.70
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-16
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
2.34
|
Sub Brand
None
|
Supplier Part Number
6S20CTD16
|
Product Weight
2.30 lbs
|
