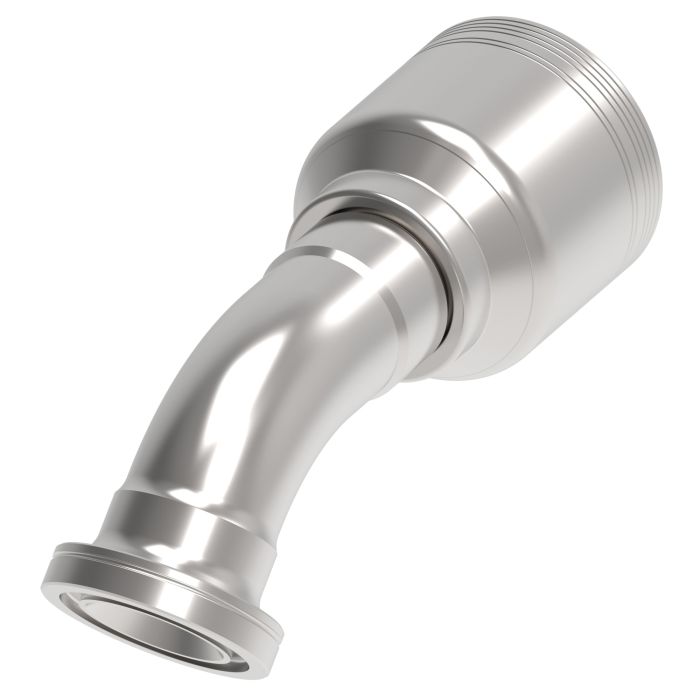

Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting

Description & Features

The Eaton Aeroquip 6-Wire Spiral TTC Fitting is crafted for durability and designed to deliver exceptional performance. Featuring Dura-Kote plating this fitting offers superior corrosion resistance ensuring long-lasting functionality in demanding conditions. Its innovative design supports maximum uptime confirming that your operations run smoothly with minimal interruptions.

Engineered to extend the life of hose assemblies this fitting is an ideal choice for heavy-duty applications. Compliant with SAE J1176 standards it assures reliability and safety. The carbon steel construction enhances the fitting's strength and resilience making it a robust choice for industrial use.

The TTC fitting comes with a flanged end type on one side and a line/hose/tube end type on the other accommodating various connection needs. The drop dimension is 1.5400 inches and the product width is 2.61 inches.

Supplier Part Number: 6S20FHA20

MPN: EAR99

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 6.6 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 62 Flange	Construction Style Crimp	Cut-Off Factor 4.39 in	Dimension Standards SAE J1176	Dimensions 7.66 in L x 2.61 in W x 3.9 in H	Drop Dimensions 1.54 in	End Size 1 20	Finish Dura-Kote™	Fitting Type 45 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 6S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Rhonda T on Feb 19, 2026, 10:15 AM

What size hose does this fitting work with? Just wanna make sure it's the right one before I order.

Answer by: Customer Support on Feb 20, 2026, 5:45 PM

This Eaton Aeroquip fitting is designed for a hose dash size of -20, which should match what you're looking for if you need that specific size.
