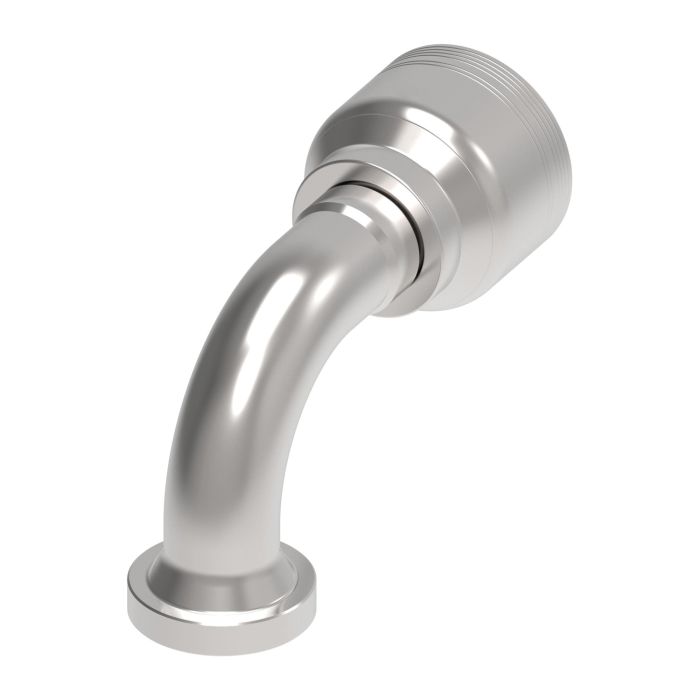

Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting

Description & Features

This Eaton Aeroquip 6-Wire Spiral TTC Fitting features a flanged end type on one side and a line/hose/tube connection on the other. Constructed from carbon steel with Dura-Kote plating, this fitting offers superior corrosion resistance and extended hose assembly life. Its innovative design ensures reliable performance and maximum uptime.

The Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting is certified to SAE J1176 standards. It is part of the Aeroquip sub-brand and is designed to provide a secure and lasting connection in demanding hydraulic applications. This fitting assembly has a -16 hose dash size.

SKU: 6S20FHB16

Supplier Part Number (MPN): 6S20FHB16

Alternate Part Numbers: MI-08511121, MINO-00925X00539

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5.72 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1-1/4 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 62 Flange	Construction Style Crimp	Cut-Off Factor 4.15 in	Dimension Standards SAE J1176	Dimensions 6.78 in L x 2.34 in W x 4.67 in H	Drop Dimensions 3-1/2 in	End Size 1 20	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code C	Series 6S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Shawn W on Feb 12, 2026, 8:51 PM

got a -16 hose setup, is this the right fitting size or am i off a dash?

Answer by: Customer Support on Feb 14, 2026, 11:23 AM

Match it to the hose dash size. This fitting assembly is built for a -16 hose dash size.

Question by: Peggy H on Aug 13, 2025, 9:41 AM

Will this fitting hold up in a hydraulic system running around 3000 PSI?

Answer by: Customer Support on Aug 14, 2025, 7:08 PM

Constructed from carbon steel with Dura-Kote plating, this fitting offers superior corrosion resistance and should provide a secure and lasting connection in demanding hydraulic applications, including those around 3000 PSI.
