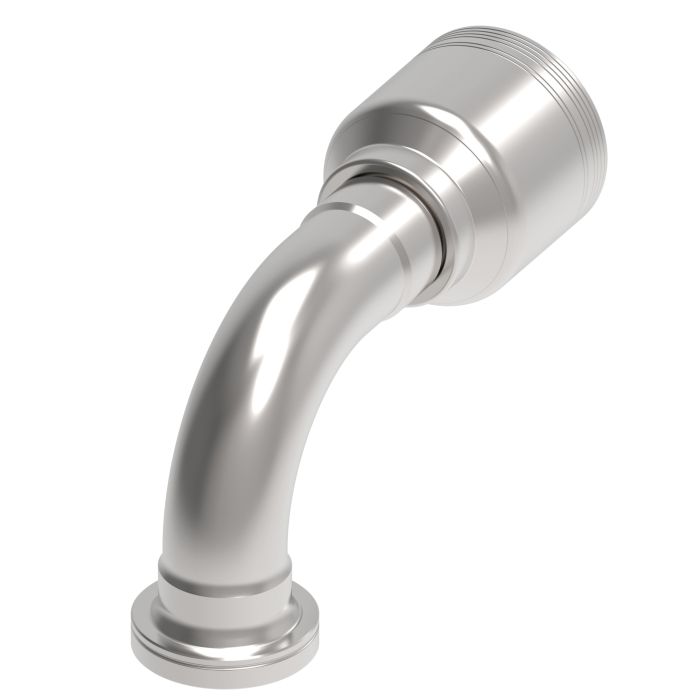

Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting

Description & Features

The Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting is engineered for optimal performance and longevity. Featuring a 90-degree flanged end and a line/hose/tube connection this fitting complies with SAE J1176 standards.

This product includes Dura-Kote plating enhancing corrosion resistance and ensuring durability in demanding environments.

Constructed from carbon steel it is designed to support a hose dash size of -20. The innovative design of the 6S20FHB20 maximizes uptime and extends the life of hose assemblies.

Supplier Part Number: 6S20FHB20

MPN: 6S20FHB20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 6.4 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 62 Flange	Construction Style Crimp	Cut-Off Factor 4.19 in	Dimension Standards SAE J1176	Dimensions 7.46 in L x 2.61 in W x 4.8 in H	Drop Dimensions 3-1/2 in	End Size 1 20	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 6S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Dwayne E on Sep 5, 2025, 7:06 AM

Will this fitting hold up to a lot of vibration and abuse on heavy equipment?

Answer by: Customer Support on Sep 7, 2025, 6:22 AM

Dura-Kote plating gives this fitting good corrosion resistance, and its design is meant to maximize uptime, even extending the life of hose assemblies in demanding situations.

Question by: Tammy B on Apr 20, 2025, 9:03 AM

Got a -20 hose I'm trying to fit with a 90-degree flange end. This the right part for that?

Answer by: Customer Support on Apr 21, 2025, 11:19 AM

For a -20 hose dash size with a flanged end at 90 degrees, this fitting is built exactly for that setup. The second end is a line/hose/tube connection, so you get the angle and the connection type in one assembly. It's also carbon steel with Dura-Kote plating, which holds up well against corrosion if you're running it somewhere that sees moisture or tough conditions.
