Split Flange Code 62 60°

Description & Features

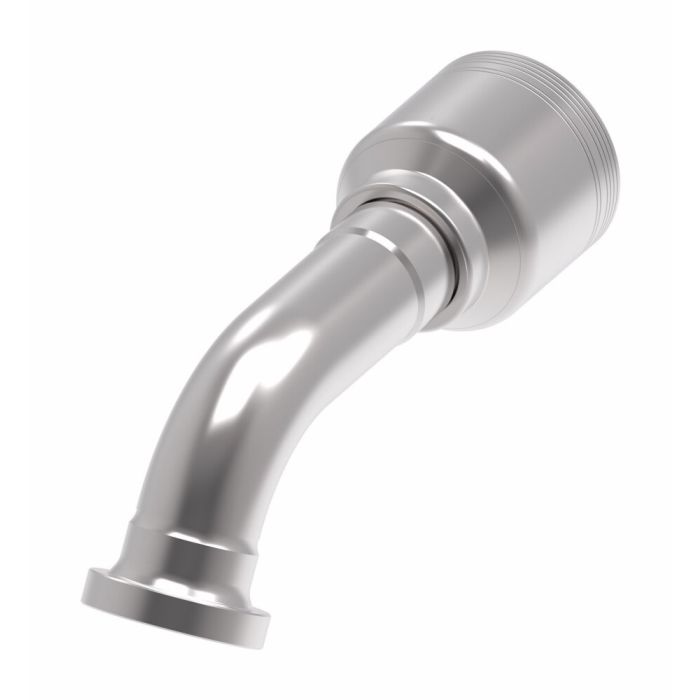

This Eaton Aeroquip split flange is a Code 62, 60-degree fitting assembly suitable for hose or tube connection.

Manufactured from carbon steel, this fitting offers Dura-Kote plating for enhanced corrosion resistance and extended hose assembly life. Engineered for performance and maximum uptime, it meets SAE J1176 standards.

SKU: 6S20FHG20

Supplier Part Number (MPN): 6S20FHG20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 7.9 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 62 Flange	Construction Style Crimp	Cut-Off Factor 5.69 in	Dimension Standards SAE J1176	Drop Dimensions 2.2 in	End Connection Torque 96 to 111 lb-ft	End Size 1 20	Finish Dura-Kote™	Fitting Type 60 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code C	Series 6S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Melvin W on May 15, 2025, 10:07 AM

Can this fitting handle hydraulic fluid, or is it for something else?

Answer by: Customer Support on May 16, 2025, 12:07 PM

It's designed for hydraulic applications, as it's an Eaton Aeroquip 6-wire spiral fitting.

Question by: Troy J on Jun 9, 2025, 7:26 PM

what's the flange code on this fitting, 61 or 62? trying to make sure I match up with the rest of my system before I order

Answer by: Customer Support on Jun 11, 2025, 9:00 AM

Code 62 is what you're working with here. That's the higher-pressure flange standard, so if your ports and mating flanges are already spec'd for Code 62, this one will line up right. Just double-check your existing hardware before pulling the trigger.
