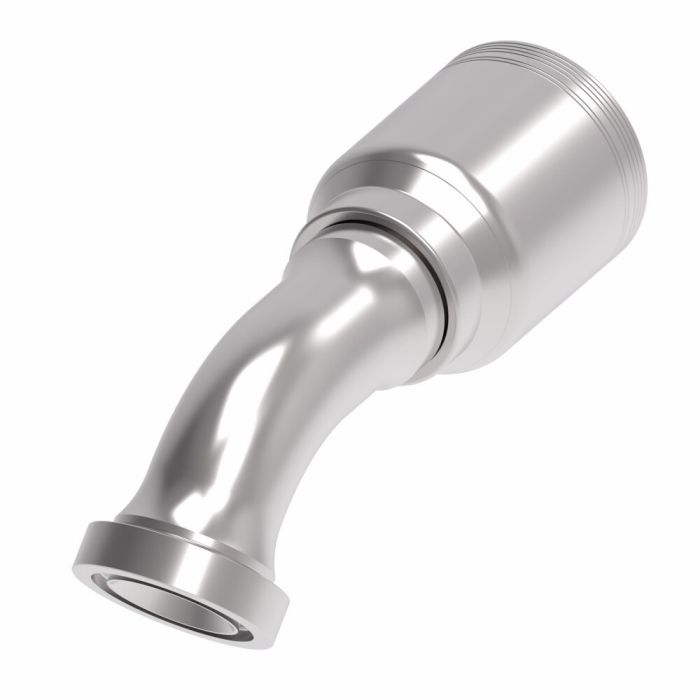

The Cat Flange 45 is a precision-engineered component by Danfoss Power Solutions designed to meet SAE J1176 standards. This fitting features Dura-Kote plating ensuring superior corrosion resistance which is crucial for maintaining system longevity in demanding industrial environments.
Constructed from robust carbon steel this flange employs an innovative design to deliver reliable performance aimed at maximizing uptime and enhancing the overall lifespan of hose assemblies. The 45 elbow configuration is specifically designed for compatibility with line/hose/tube applications making it versatile in various setups.
With a hose dash size of -24 the Cat Flange 45 fits seamlessly into the 6S Series Crimp Hose Fittings providing a secure and dependable connection. It also boasts a drop dimension of 1.8200 adding to its precision fit and functionality. The product width is 2.94 ensuring it meets specific space and design requirements.
Certifications include SAE J1176 adding a layer of credibility and assurance regarding its quality and performance standards.
Supplier Part Number: 6S24CTA24
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-07223262, Alternate Part Number MINO-00015X07663, Alternate Part Number MINO-00925F19975
Certifications
SAE J1176
Drop Dimension
1.82
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-24
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
2.94
Sub Brand
None
Supplier Part Number
6S24CTA24
Product Weight
4.49 lbs
Product Questions & Answers (2)
Question by: Chad K on Apr 20, 2025, 10:04 AM
Does the Dura-Kote plating on this thing actually hold up in wet or dirty environments, or is that just marketing talk?
Answer by: Customer Support on Apr 21, 2025, 9:31 PM
Dura-Kote is a legitimate corrosion-resistant finish, not a label slapped on for show. Carbon steel fittings without a proper coating can start showing wear pretty quick when moisture and grime are in the picture. The plating on this fitting is specifically there to extend service life in demanding conditions, which is exactly the kind of environment these hose assemblies tend to live in.
Question by: Rhonda E on May 18, 2025, 8:51 AM
Will this flange hold up to a pretty good amount of pressure?
Answer by: Customer Support on May 19, 2025, 2:27 PM
It's built with Dura-Kote plating over carbon steel, which offers good corrosion resistance and should help it last longer in demanding environments.
