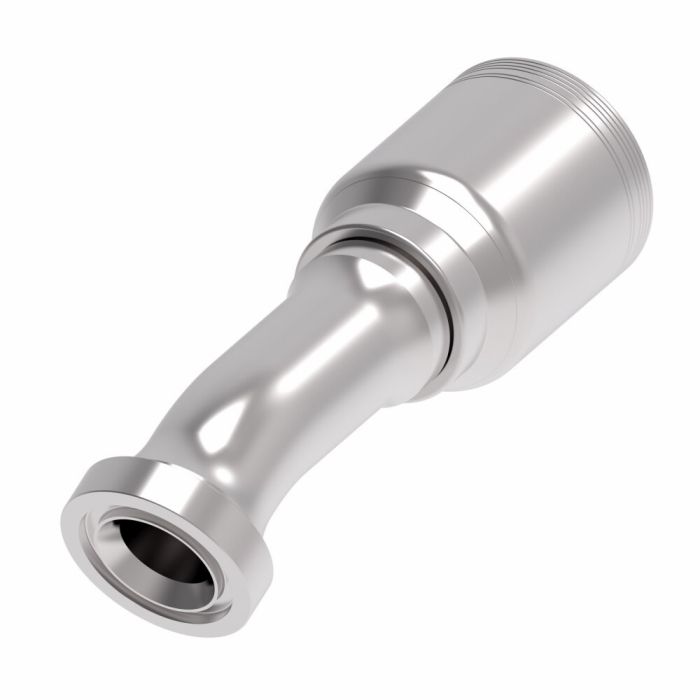

Danfoss / Eaton 6Wire #24 CAT FLG 22.5Deg X 24Hose

Description & Features

Designed for high-pressure hydraulic hose assemblies, the Danfoss / Eaton 6Wire #24 CAT FLG 22.5Deg X 24Hose is a carbon steel crimp fitting that combines a SAE Code 61/62-style CAT flange end with a 22.5-degree elbow orientation and a #24 hose dash size connection. The flanged end type makes it well suited for demanding heavy-equipment and industrial hydraulic circuits where secure, leak-resistant connections are required at offset routing angles.

Built to SAE J1176 standards, this fitting features Eaton Aeroquip's Dura-Kote plating, which provides strong corrosion resistance in harsh operating environments. The 6S Series is engineered for extended hose assembly service life, and the fitting's design supports maximum system uptime through consistent, reliable performance. At approximately 1 lb, it ships as a single fitting assembly.

SKU: 6S24CTD24

Supplier Part Number (MPN): 6S24CTD24

Specifications

Alternate Part Numbers Alternate Part Number MINO-00015X07667	Certifications SAE J1176	Drop Dimension 0.76	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -24	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.97	Sub Brand None	Supplier Part Number 6S24CTD24	Product Weight 4.49 lbs

Product Questions & Answers (1)

Question by: Warren M on Jan 10, 2026, 10:00 AM

What's the angle on this fitting, and is it meant for tight routing situations where a straight connection just ain't gonna work?

Answer by: Customer Support on Jan 12, 2026, 6:46 AM

The elbow on this fitting comes in at 22.5 degrees, which puts it right in that middle ground between a straight run and a sharper 45-degree turn. That makes it useful when your hose needs a gentle offset to clear a frame member or nearby component without putting a bind in the line. It pairs with a #24 hose dash size on the hose end, so as long as your assembly calls for that size, the geometry here gives you a clean, low-stress routing path.
