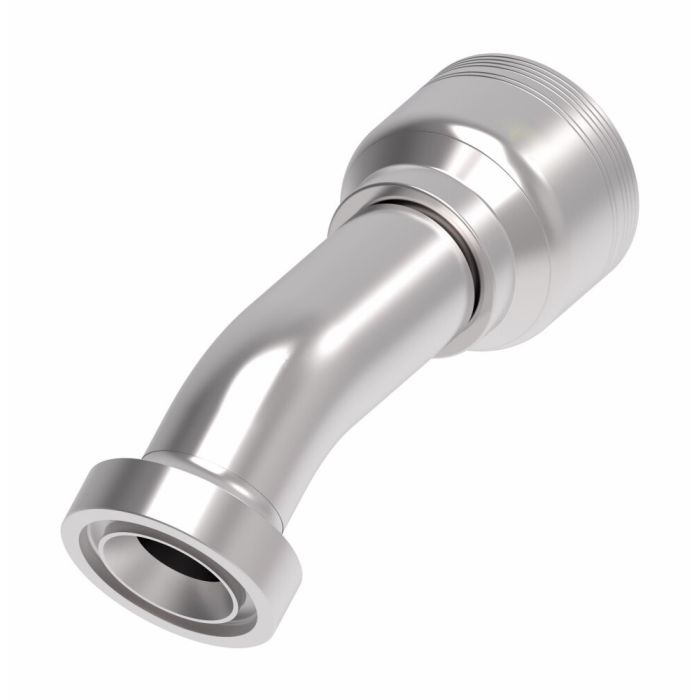

DANFOSS / EATON 6WIRE #24 CAT FLG 30 DEG X 20 HOSE

Description & Features

Designed for high-pressure hydraulic hose assemblies, the Danfoss / Eaton 6Wire #24 Cat Flg 30 Deg x 20 Hose is a carbon steel crimp fitting configured with a 30-degree CAT flange end and a -20 hose end. The flanged connection type suits demanding fluid power circuits where secure, leak-resistant attachment is required at the hose termination point.

Part of Eaton Aeroquip's 6S Series, this fitting assembly carries SAE J1176 certification and features Dura-Kote plating for corrosion resistance in harsh service environments. The system-engineered design is intended to extend hose assembly service life and support consistent uptime in heavy-duty hydraulic applications. With a package weight of 1 lb and a product width of 2.61 inches, it is suited for installation where precise dimensional fit is critical.

SKU: 6S24CTF20

Supplier Part Number (MPN): 6S24CTF20

Specifications

Alternate Part Numbers Alternate Part Number MINO-00015X07670	Certifications SAE J1176	Drop Dimension 1.09	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -20	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.61	Sub Brand None	Supplier Part Number 6S24CTF20	Product Weight 3.40 lbs

Product Questions & Answers (2)

Question by: Steve G on Jul 25, 2025, 7:36 PM

Is this fitting okay for high-pressure setups on hydraulic hoses?

Answer by: Customer Support on Jul 27, 2025, 6:02 AM

Yes, this fitting is designed for high-pressure hydraulic hose assemblies, so it should suit your needs. It's part of the Eaton Aeroquip 6S Series and SAE J1176 certified, so it should hold up well.

Question by: Clint M on Jan 18, 2026, 3:18 PM

trying to replace a busted hose end. is 6S24CTF20 the one thats a 30 degree cat flange on one side and -20 hose on the other?

Answer by: Customer Support on Jan 19, 2026, 8:18 PM

That part number is a 6S Series crimp fitting assembly with a 30 degree CAT flange end on one side and a -20 hose end on the other, built for high pressure hydraulic hose assemblies.
