DANFOSS / EATON 6WIRE #24 CAT FLG 30 DEG X 24 HOSE

Description & Features

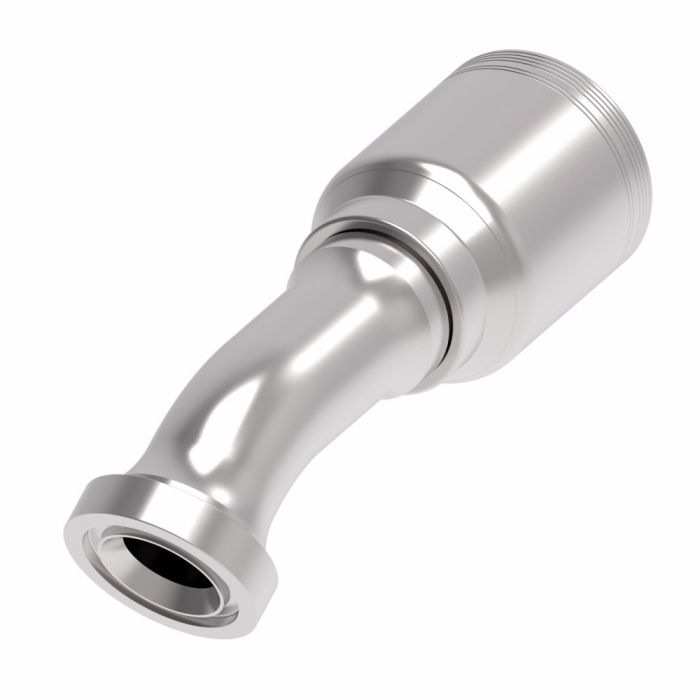

This Eaton Aeroquip 6S Series crimp hose fitting is designed with a CAT flange and a 30-degree elbow. It is suitable for connecting a #24 hose to a flanged connection.

Constructed from carbon steel, this DANFOSS / EATON 6WIRE #24 CAT FLG 30 DEG X 24 HOSE fitting assembly is SAE J1176 certified. The Dura-Kote plating provides enhanced corrosion resistance, ensuring long-lasting performance and maximum uptime. Its system-engineered design contributes to extending hose assembly life.

SKU: 6S24CTF24

Supplier Part Number (MPN): 6S24CTF24

Specifications

a Dimensions 8.85 in	Compatible Hose ID 1-1/2 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Caterpillar Flanged	Construction Style Crimp	Cut-Off Factor 5.78 in	Dimension Standards SAE J1176	Dimensions 10.1 in L x 2.97 in W x 3.82 in H	Drop Dimensions 1.09 in	End Size 1 24	Finish Dura-Kote™	Fitting Type 30 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hose Dash Size 24	Inside Diameter 1.22 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 6S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Roy M on Aug 2, 2025, 8:36 PM

Got a #24 hose I need to tie into a CAT flange port at kind of an awkward angle, does this fitting actually come in a 30-degree elbow configuration, or is that just the part name?

Answer by: Customer Support on Aug 4, 2025, 1:01 PM

Yeah, that 30-degree elbow is a real part of the design, not just a label. The fitting puts the hose at a 30-degree offset from the flange face, which helps a lot when you're working in tight quarters or routing around other components. The flange end connects to a CAT-style flanged port and the hose end is sized for a #24 hose. Both ends are what the part is built around, so you're getting exactly what the name describes.
