Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting

Description & Features

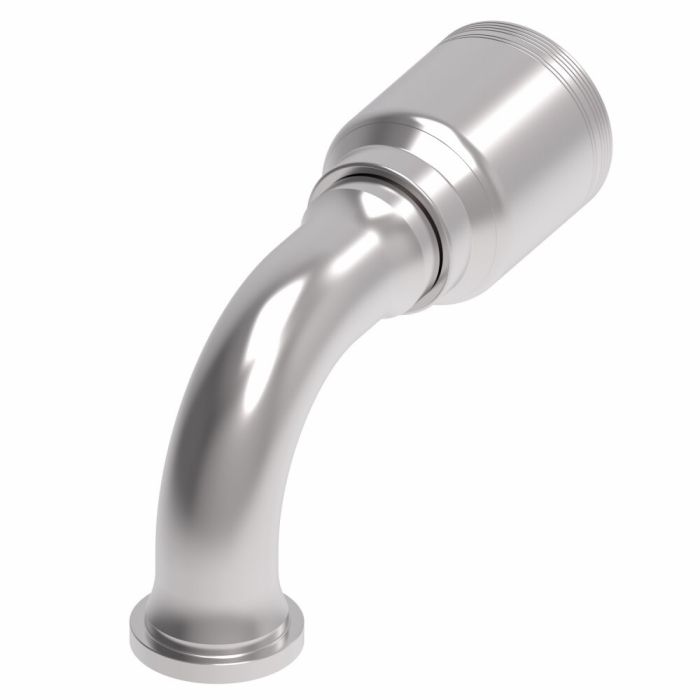

Designed for high-demand hydraulic systems requiring robust flange connections, the Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting is a carbon steel fitting assembly configured with a SAE Code 61 flanged end and a 90-degree elbow orientation. The -24 hose dash size accommodates large-bore spiral hose, making it well suited for heavy-duty industrial and mobile hydraulic circuits where connection integrity and service life are critical.

Dura-Kote plating provides superior corrosion resistance, while the system-engineered design works to extend hose assembly life and support maximum uptime in demanding hydraulic environments. Certified to SAE J1176, this fitting meets recognized industry standards for hydraulic hose fitting performance.

SKU: 6S24FLB24

Supplier Part Number (MPN): 6S24FLB24

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 8.22 in	Compatible Hose ID 1-1/2 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 5.15 in	Dimension Standards SAE J1176	Dimensions 9.4 in L x 2.96 in W x 5.6 in H	Drop Dimensions 4.09 in	End Size 1 24	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hose Dash Size 24	Inside Diameter 1.22 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 6S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Gene C on Nov 1, 2025, 7:31 PM

Just makin' sure, this is carbon steel, right? Don't wanna order the wrong thing.

Answer by: Customer Support on Nov 3, 2025, 4:43 PM

Yes, this Danfoss / Eaton Aeroquip fitting is made from carbon steel.
