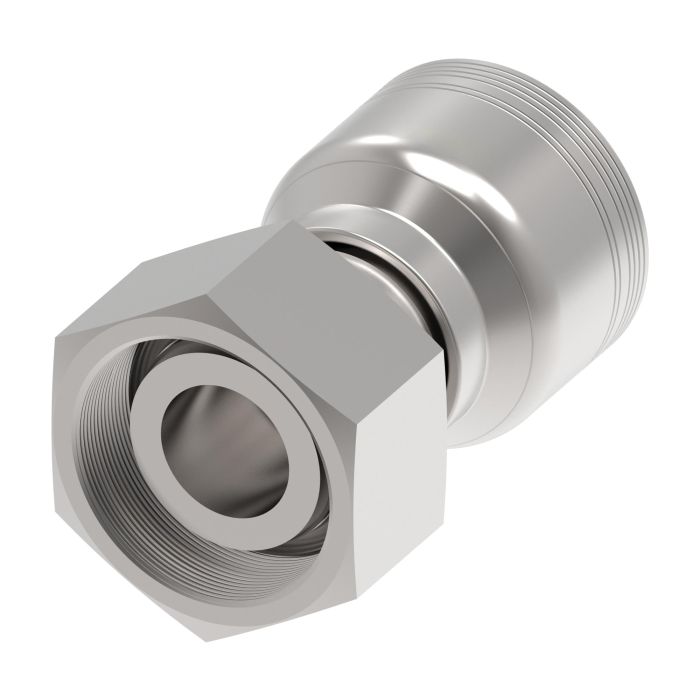

Female Swivel DIN 24° Seat

Description & Features

Engineered for durability and performance, the Eaton Aeroquip Female Swivel DIN 24° Seat fitting is a top choice for hydraulic applications requiring reliable connections. Crafted from robust carbon steel, this fitting is built to withstand demanding environments, while its innovative design ensures maximum uptime and extends hose assembly life. The Dura-Kote plating offers superior corrosion resistance, meeting SAE J1176 standards, making it highly suitable for industrial use.

Featuring a Metric female end and a versatile Line/Hose/Tube connection type, this fitting accommodates a hose dash size of -16. Its hex size measures 1.96 inches, providing a secure fit and ease of installation. With a product width of 2.34 inches and a package weight of 4.64 lb, this fitting balances size and strength effectively. The Eaton Aeroquip brand guarantees quality and compatibility within its extensive range of hydraulic components.

SKU: 6S25DS16

Supplier Part Number (MPN): 6S25DS16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.59 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Female Metric Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female DIN Heavy 24 deg Seat Swivel	Construction Style Crimp	Cut-Off Factor 2.02 in	Dimension Standards SAE J1176	Dimensions 3.59 in L x 2.34 in W x 2.34 in H	End Gender 1 Female	End Size 1 16	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hex Size 1.97 in	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code C	Series 6S Series	Thread Sealant Without Thread Sealant	Thread Size M42x2

Product Questions & Answers (2)

Question by: Keith A on Sep 17, 2025, 10:08 AM

Is this fitting compatible with SAE J1176 specifications?

Answer by: Customer Support on Sep 18, 2025, 5:31 PM

Yes, this fitting is certified to meet SAE J1176 standards.

Question by: Sheila R on Sep 6, 2025, 12:26 PM

does this fitting have any kind of corrosion protection on it? running equipment that sees a lot of moisture and had some rust problems with cheaper fittings before

Answer by: Customer Support on Sep 8, 2025, 6:38 AM

Carbon steel fittings can be hit or miss in wet conditions, but this one comes with Dura-Kote plating specifically to hold up against corrosion. It's part of what separates the 6S Series from bare-steel alternatives. If you've had rust issues with other brands, the plating here should make a noticeable difference in how long the fitting holds up.
