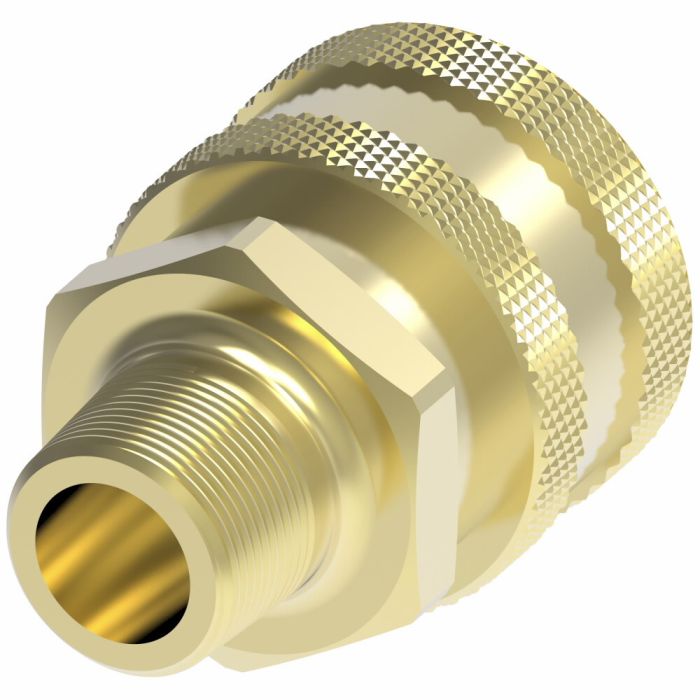

Designed for reliable fluid transfer in demanding environments, the ST Series Quick Disconnect Coupling Socket from Eaton Hansen offers efficient performance across a variety of applications, including chemical processing, food and beverage production, marine use, and steam cleaning. Featuring a robust brass construction, this socket ensures durability and resistance to corrosion, making it well-suited for harsh conditions.
With its push-to-connect end type and ball lock internal connection, users can expect quick and secure connections without the need for special tools. The coupling supports a flow rate of up to 66 gallons per minute and can operate in temperatures as low as -40°F. Compliant with ISO 16028 standards, this female half coupling socket provides reliable performance with no safety locking mechanism, utilizing a Buna-N seal for leak-proof operation. The ST SeriesSocket Brass is engineered with a 3/4 BSPP port size and a straight-thru valve type for optimal flow.
SKU: 6S30BS
Supplier Part Number (MPN): 6S30BS
|
Alternate Part Numbers
MINO-00015X07682
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 2
0.75
|
End Type 1
Push to Connect
|
End Type 2
BSPP
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
66 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/4
|
Product Material
Brass
|
Product Width
1.72
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
6S30BS
|
Valve Type
Straight Thru
|
Product Weight
0.57 lbs
|
