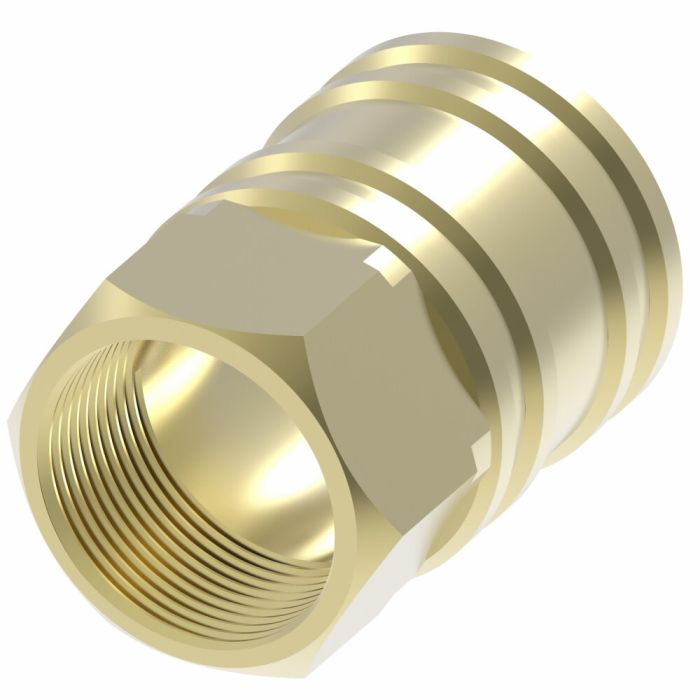

Designed for demanding fluid transfer applications, the Danfoss / Eaton Hansen Socket is a 3/4-inch female half quick disconnect coupling constructed from brass with a Buna-N seal. The ball lock internal connection accepts push-to-connect on one end and 3/4 NPTF on the other, supporting a straight-through valve design for efficient flow.
Rated for a maximum flow of 66 gallons per minute and operable down to -40°F, this coupling exceeds ISO 16028 pressure standards. No special tools are required for connection or disconnection, making it well suited for frequent coupling cycles across a broad range of environments.
Suitable applications include chemical handling, food and beverage processing, injection molding, marine, medical, pressure washing, and steam cleaning. Part of the Hansen ST Series, this coupling delivers reliable performance where quick, tool-free fluid connections are required.
SKU: 6S31
Supplier Part Number (MPN): 6S31
|
Alternate Part Numbers
MINO-00015X07686
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.75
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
66 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/4
|
Product Material
Brass
|
Product Width
1.72
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
6S31
|
Valve Type
Straight Thru
|
Product Weight
0.66 lbs
|
