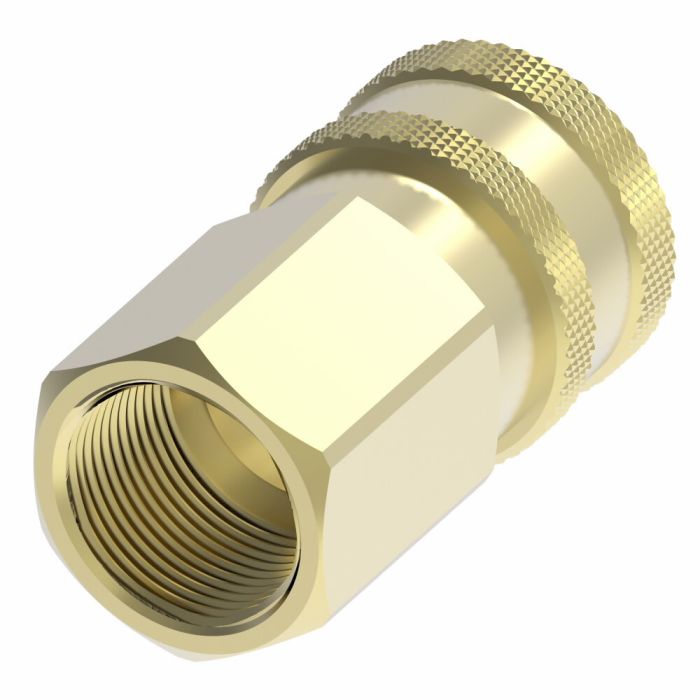

This female half, ST Series socket is ideal for fluid transfer applications, as well as use with chemicals, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning equipment. The Cplng, ST SERIESSOCKET, BRASS features a push-to-connect design for quick connection and disconnection without the need for special tools. It exceeds ISO 16028 operating pressures.
Constructed from brass with a Buna-N seal, this coupling has a female NPTF end and a female push-to-connect end, both with a 3/4" port size. It features a ball lock internal connection type and a straight-through valve. This quick disconnect coupling supports a flow rate of up to 66 gallons per minute and can function in temperatures as low as -4 degrees Fahrenheit.
SKU: 6S31143
Supplier Part Number (MPN): 6S31143
|
Alternate Part Numbers
MINO-00015X07687
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.75
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
66 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-4
|
Net Pack Quantity Units
EA
|
Port Size
3/4
|
Product Material
Brass
|
Product Width
1.72
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
6S31143
|
Valve Type
Straight Thru
|
Product Weight
0.67 lbs
|
