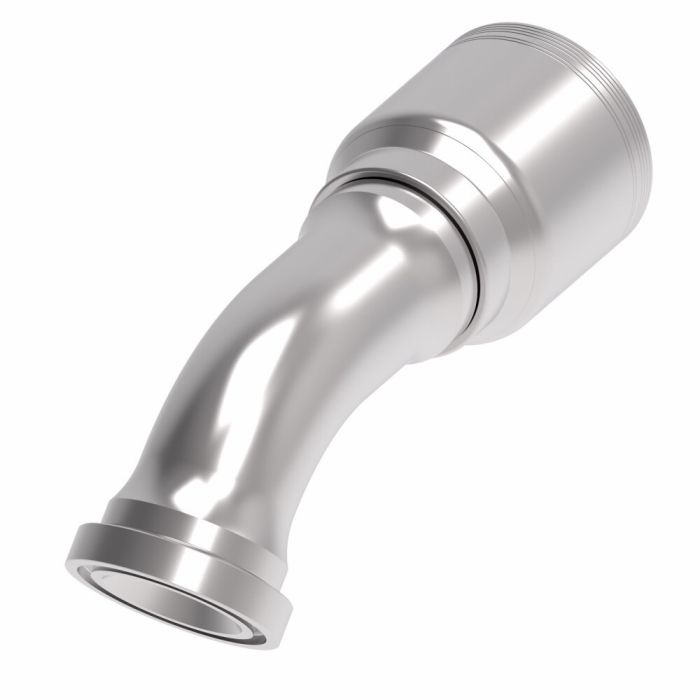

Cat Flange 45°

Description & Features

Designed for high-demand hydraulic hose assemblies, the Cat Flange 45° is a carbon steel crimp fitting engineered for use with -32 dash size hoses in flanged connection configurations. Its 45-degree elbow geometry accommodates angled routing in tight or space-constrained installations where straight fittings are not practical.

Built to SAE J1176 standards, this Eaton Aeroquip 6S Series assembly fitting is part of a system-engineered product line intended to extend hose assembly service life and maximize uptime. Dura-Kote plating provides corrosion resistance suited to the demanding environments typical of heavy equipment and industrial hydraulic systems. The flanged end type connects to SAT-style split flange ports, while the hose end accepts spiral-wound hose construction consistent with the 6-wire series.

SKU: 6S32CTA32

Supplier Part Number (MPN): 6S32CTA32

Alternate Part Numbers: MI-07223270, MINO-00925F20594

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 10.04 in	Compatible Hose ID 2 in	Compatible Tube OD 2 in	Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Caterpillar Flanged	Construction Style Crimp	Cut-Off Factor 6.97 in	Dimension Standards SAE J1176	Dimensions 11.6 in L x 3.56 in W x 5.69 in H	Drop Dimensions 2.31 in	End Size 1 32	Finish Dura-Kote™	Fitting Type 45 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hose Dash Size 32	Inside Diameter 1.66 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code C	Series 6S Series	Thread Sealant Without Thread Sealant	Tube Outside Diameter 1 2 in

Product Questions & Answers (2)

Question by: Duane G on Jun 23, 2025, 1:14 PM

Will this fitting hold up to high pressure hydraulic applications, or is it more for lighter duty stuff?

Answer by: Customer Support on Jun 25, 2025, 8:09 AM

Dura-Kote plating provides superior corrosion resistance to extend the life of this Eaton Aeroquip fitting, even in demanding hydraulic systems.

Question by: Gene M on Oct 18, 2025, 6:06 AM

does this fitting work with 6-wire spiral hose, or is it meant for something else?

Answer by: Customer Support on Oct 19, 2025, 7:21 PM

Built for 6-wire spiral hose assemblies, this is part of Eaton Aeroquip's 6S Series crimp fitting lineup. The -32 dash size tells you the hose bore it's matched to, and the 45-degree CAT flange end handles the connection on the equipment side. If you're running high-pressure spiral hose in heavy equipment applications, this is the fitting family it belongs to.
