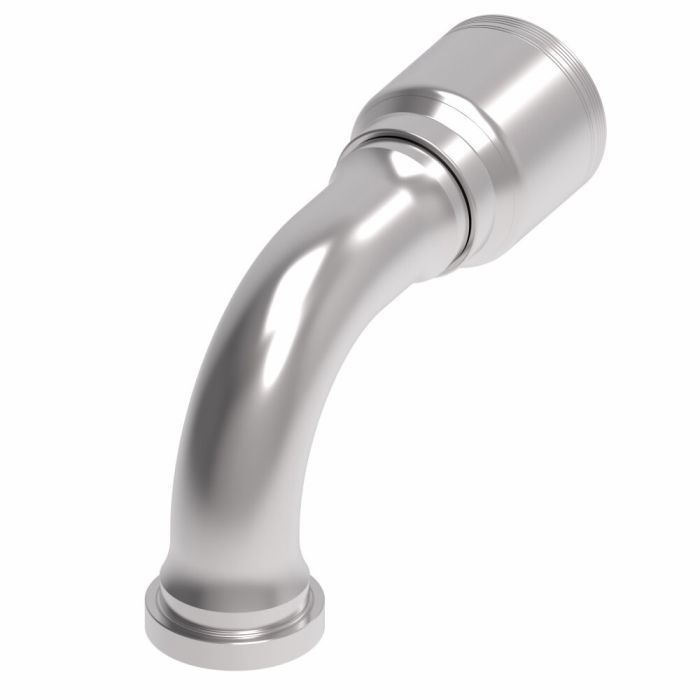

Constructed from carbon steel with Dura-Kote plating, this fitting delivers reliable corrosion resistance in demanding hydraulic environments. The Cat Flange 90° is a Danfoss Power Solutions (Aeroquip) 6S Series crimp hose fitting designed for -32 hose dash size applications, with a flanged end and a 90-degree elbow configuration suited to tight routing requirements. It meets SAE J1176 certification standards and is engineered as part of a system-matched design intended to extend hose assembly service life and support consistent uptime. The carbon steel body with a 3.56-inch product width and 5.5-inch drop dimension provides a defined, measurable fit for line and hose connections in heavy equipment and industrial hydraulic circuits.
SKU: 6S32CTB32
Supplier Part Number (MPN): 6S32CTB32
Alternate Part Numbers: MI-07223272, MINO-00925F20597
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-07223272, Alternate Part Number MINO-00015X07703, Alternate Part Number MINO-00925F20597
Certifications
SAE J1176
Drop Dimension
5.50
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-32
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
3.56
Sub Brand
None
Supplier Part Number
6S32CTB32
Product Weight
9.61 lbs
Product Questions & Answers (1)
Question by: Harvey S on Feb 22, 2026, 2:43 PM
Will this flange fitting work with a 6-wire spiral hose?
Answer by: Customer Support on Feb 24, 2026, 8:57 AM
Yes, this Eaton Aeroquip fitting is specifically designed for use with 6-wire spiral TTC hoses.
