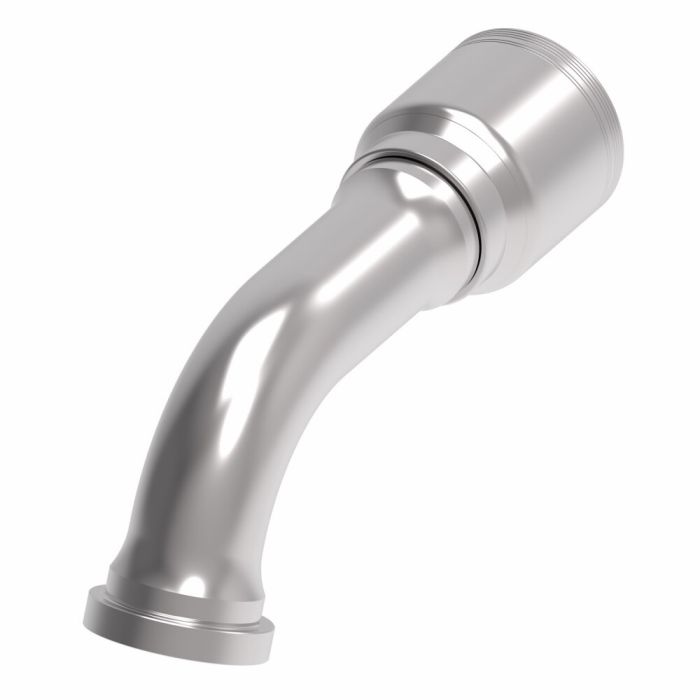

Designed for high-angle routing in hydraulic hose assemblies, this -32 dash size carbon steel fitting delivers a 67.5-degree elbow configuration with a CAT flange end connection. The Ftng (Perm) 6-sprl 67.5D is part of the Aeroquip 6S Series crimp fitting line, built to SAE J1176 certification standards for reliable performance in demanding hydraulic systems.
Dura-Kote plating provides strong corrosion resistance, making this fitting well-suited for equipment exposed to harsh operating environments. The system-engineered design is intended to extend hose assembly service life and support maximum uptime. With a flanged end type on one side and a line/hose/tube connection on the other, this fitting assembly accommodates direct integration into CAT flange hydraulic circuits at the specified elbow angle.
SKU: 6S32CTE32
Supplier Part Number (MPN): 6S32CTE32
|
Alternate Part Numbers
MINO-00015X07705
|
Certifications
SAE J1176
|
Drop Dimension
3.97
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-32
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
3.56
|
Sub Brand
None
|
Supplier Part Number
6S32CTE32
|
Product Weight
9.61 lbs
|
