Cat Flange 30°

Description & Features

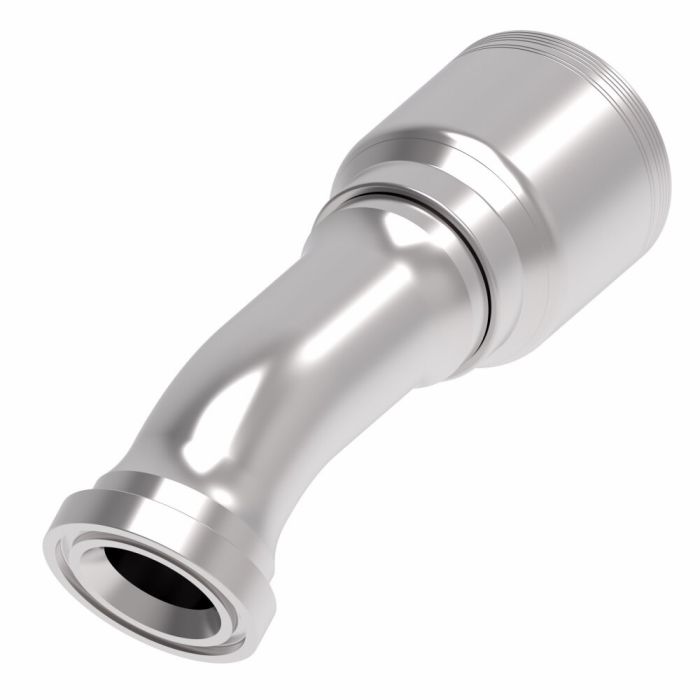

This Eaton Aeroquip crimp hose fitting is a 6S Series CAT Flange 30° elbow designed for 6-wire spiral hoses.

Constructed from carbon steel and plated with Dura-Kote for superior corrosion resistance, this fitting assembly ensures durability and extended hose assembly life. Engineered for high performance and maximum uptime, the flanged end type 1 and line/hose/tube end type 2 are certified to SAE J1176 standards.

SKU: 6S32CTF32

Supplier Part Number (MPN): 6S32CTF32

Specifications

Alternate Part Numbers Alternate Part Number MINO-00015X07707	Certifications SAE J1176	Drop Dimension 1.37	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -32	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 3.56	Sub Brand None	Supplier Part Number 6S32CTF32	Product Weight 8.11 lbs

Product Questions & Answers (2)

Question by: Ronnie G on May 25, 2025, 3:36 PM

Will this fitting work for a six-wire spiral hose?

Answer by: Customer Support on May 26, 2025, 5:43 PM

Yes, it's an Eaton Aeroquip 6S Series fitting specifically designed for that type of hose, sometimes called TTC fitting.

Question by: Steve H on Dec 4, 2025, 8:15 PM

does this fitting work with 6-wire spiral hose on a -32 dash size application?

Answer by: Customer Support on Dec 6, 2025, 6:06 AM

That's what it's built for. The 6S32CTF32 is part of Eaton Aeroquip's 6S series, which is engineered specifically for 6-wire spiral hose in -32 dash size configurations. The flanged end pairs with a CAT-style flange connection, and the 30-degree elbow geometry helps with routing in tight or angled installations.
