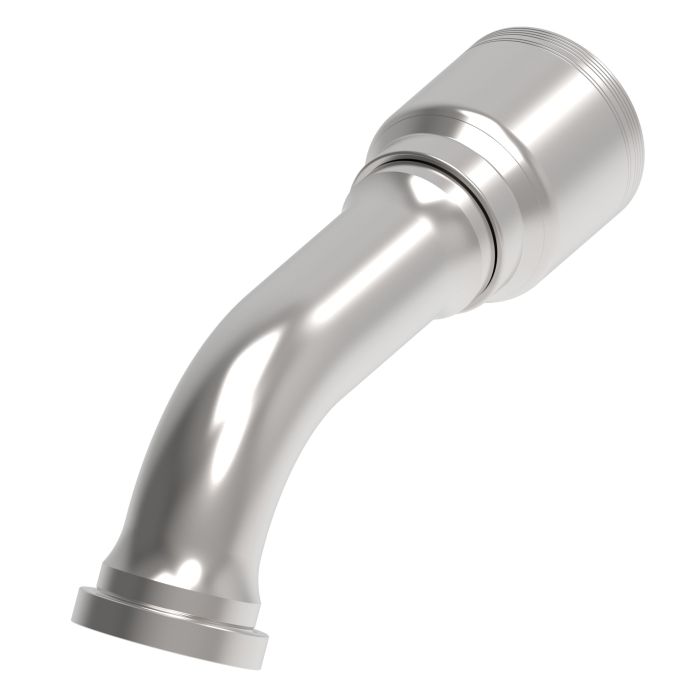

Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting

Description & Features

Designed for high-demand hydraulic hose assemblies, the Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting is a -32 dash size carbon steel fitting configured with a CAT flange end and a 60-degree elbow geometry. It is rated to SAE J1176 and suited for six-wire spiral hose applications where reliable, long-service connections are required in heavy equipment environments.

The fitting features Dura-Kote plating, which provides corrosion resistance across demanding service conditions. Its system-engineered design supports extended hose assembly service life, and the flanged end type is matched to CAT-standard flange interfaces. At approximately 1 lb, the fitting ships as a single unit assembly ready for installation.

SKU: 6S32CTG32

Supplier Part Number (MPN): 6S32CTG32

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 12.2 in	Compatible Hose ID 2 in	Compatible Tube OD 2 in	Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Caterpillar Flanged	Construction Style Crimp	Cut-Off Factor 9.13 in	Dimension Standards SAE J1176	Drop Dimensions 3.44 in	End Size 1 32	Finish Dura-Kote™	Fitting Type 60 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hose Dash Size 32	Inside Diameter 1.66 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code C	Series 6S Series	Thread Sealant Without Thread Sealant	Tube Outside Diameter 1 2 in

Product Questions & Answers (1)

Question by: Keith C on Aug 2, 2025, 11:34 AM

Is this here fitting meetin' SAE J1176 standards, or am I readin' that wrong?

Answer by: Customer Support on Aug 3, 2025, 3:31 PM

Yes sir, this Danfoss / Eaton Aeroquip fitting is certified to meet SAE J1176. You're reading it right.
