Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting

Description & Features

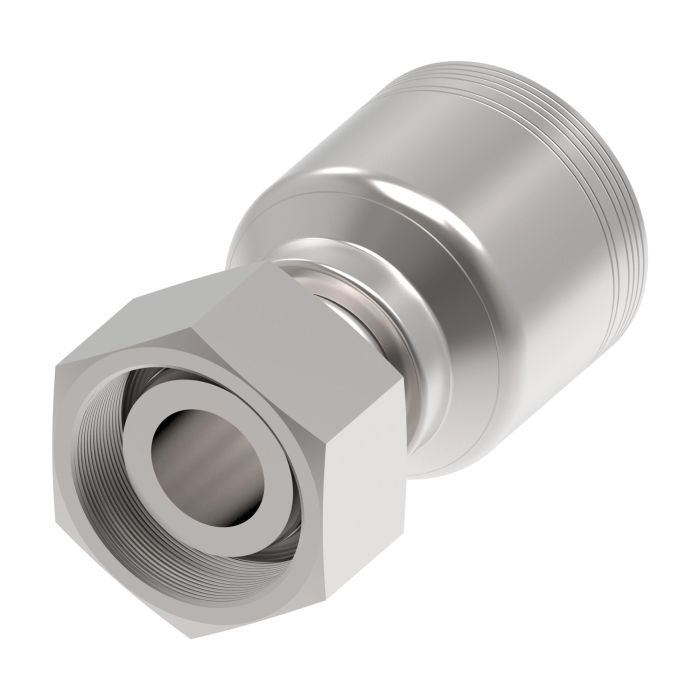

The Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting is engineered for reliability and durability in demanding applications. Featuring Dura-Kote plating it offers superior corrosion resistance ensuring long-lasting performance in various environments. This fitting is system-engineered to extend the lifespan of hose assemblies contributing to maximum uptime and efficiency.

MPN: 6S32DS20

Supplier Part Number: 6S32DS20

It is crafted from high-quality carbon steel providing robust structural integrity. This fitting complies with SAE J1176 certifications ensuring it meets stringent industry standards. With a female metric end and compatibility with line/hose/tube connections it is versatile for multiple industrial applications. The hose dash size of -20 makes it adaptable to a variety of systems. This product does not include any adjustable end battery blades or case and does not require a mandrel for operation.

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.43 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 2 in	Connection Type Female Metric Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female DIN Heavy 24 deg Seat Swivel	Construction Style Crimp	Cut-Off Factor 2.22 in	Dimension Standards SAE J1176	Dimensions 4.43 in L x 2.61 in W x 2.72 in H	End Gender 1 Female	End Size 1 32	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hex Size 2.36 in	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code C	Series 6S Series	Thread Sealant Without Thread Sealant	Thread Size M52x2

Product Questions & Answers (2)

Question by: Norm J on Sep 2, 2025, 11:26 AM

got a -20 hose setup, is this fitting meant for that dash size?

Answer by: Customer Support on Sep 4, 2025, 6:24 AM

For hose sizing, the dash size on this fitting is -20, so it matches a -20 hose application.

Question by: Ross R on Dec 29, 2025, 7:00 PM

fitting says it's got Dura-Kote plating on it -- what does that actually do for you out in the field?

Answer by: Customer Support on Dec 31, 2025, 2:42 PM

Corrosion is a real problem when fittings are exposed to moisture, chemicals, or rough outdoor conditions. The Dura-Kote plating on this fitting puts a protective barrier between the carbon steel body and whatever environment it ends up in, which means you're not pulling a rusted-out fitting six months down the road. It's one of the main reasons this line holds up longer than bare steel alternatives in demanding applications.
