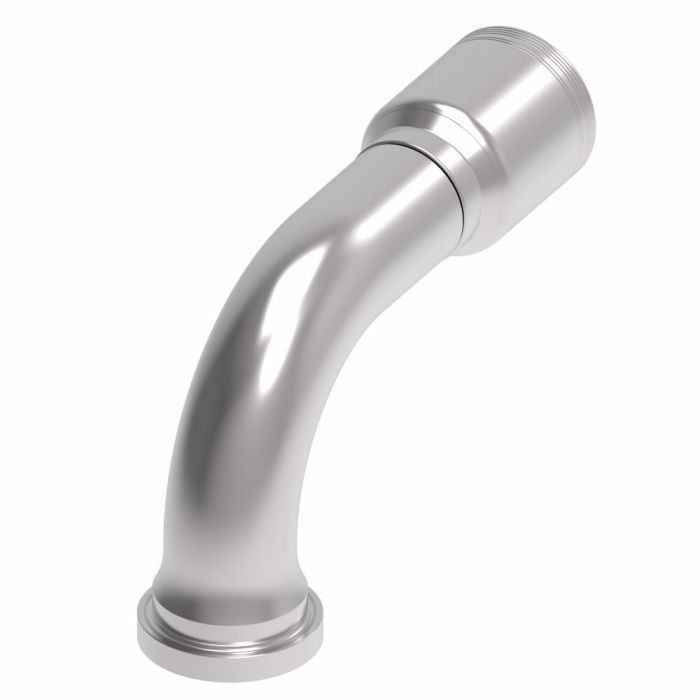

Designed for high-pressure hydraulic hose assemblies, the Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting connects a -24 dash size hose to a SAE Code 62 flanged port via a 90-degree elbow configuration. Constructed from carbon steel, it is finished with Dura-Kote plating, which provides meaningful corrosion resistance in demanding service environments.
The fitting carries SAE J1176 certification and is engineered as part of a system-matched approach intended to extend hose assembly service life and support reliable uptime. With a flanged end on one side and a line/hose/tube end on the other, it suits installations where a directional change is required at the flange connection. Weighing approximately 1 lb, it ships as a single fitting assembly.
SKU: 6S32FHB24
Supplier Part Number (MPN): 6S32FHB24
|
Alternate Part Numbers
MINO-00015X07718
|
Certifications
SAE J1176
|
Drop Dimension
5.43
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-24
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
3.13
|
Sub Brand
None
|
Supplier Part Number
6S32FHB24
|
Product Weight
8.24 lbs
|
