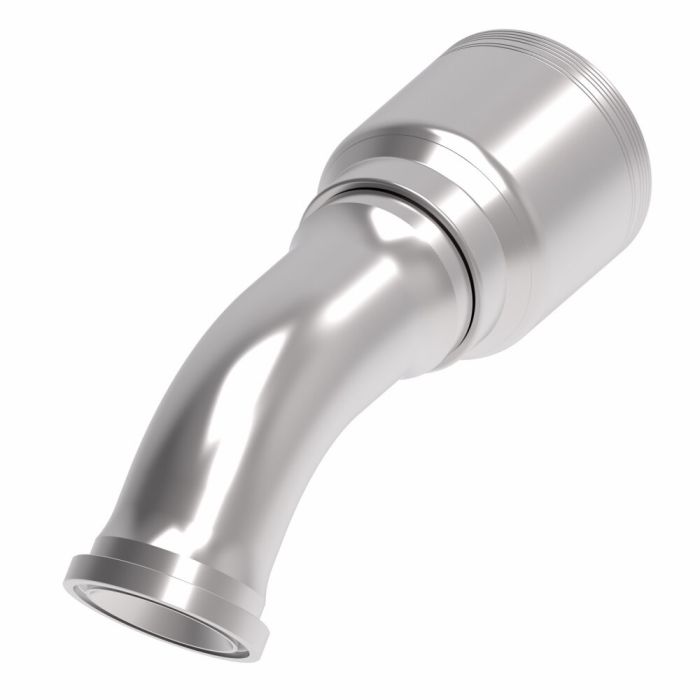

Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting

Description & Features

Designed to meet the rigorous demands of industrial applications the Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting offers unparalleled durability and performance. Constructed from robust carbon steel this fitting ensures long-lasting reliability and strength.

This TTC fitting features Dura-Kote plating providing superior corrosion resistance and safeguarding against harsh environmental conditions. The innovative design of this product enhances uptime and extends the life of hose assemblies ensuring uninterrupted operations.

Engineered to comply with SAE J1176 certifications the fitting includes a flanged end type on one side and accommodates line/hose/tube connections on the other. The drop dimension for this fitting measures 2.2600 inches and the hose dash size is -32.

For those in need of high-quality hose fittings this product represents a reliable and effective solution.

Supplier Part Number: 6S32FLA32

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 10 in	Compatible Hose ID 2 in	Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 6.92 in	Dimension Standards SAE J1176	Dimensions 11.4 in L x 3.56 in W x 5.45 in H	Drop Dimensions 2.26 in	End Size 1 32	Finish Dura-Kote™	Fitting Type 45 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hose Dash Size 32	Inside Diameter 1.66 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 6S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Brett M on Jan 14, 2026, 9:59 AM

What size hose does this fitting work with? I'm having a heck of a time figuring it out from the description.

Answer by: Customer Support on Jan 15, 2026, 5:50 PM

This Eaton Aeroquip fitting is made for a hose dash size of -32.

Question by: Dean G on Dec 20, 2025, 12:43 PM

what's the corrosion protection like on this fitting? working in a pretty rough environment and need something that'll hold up

Answer by: Customer Support on Dec 21, 2025, 8:09 PM

Carbon steel fittings normally raise that concern, but this one carries Dura-Kote plating specifically to handle harsh conditions. That coating gives it a solid layer of protection against corrosion, so it's built for environments where a bare steel fitting would break down fast. It's part of why the whole system is engineered to extend hose assembly life rather than just get the job done short-term.
