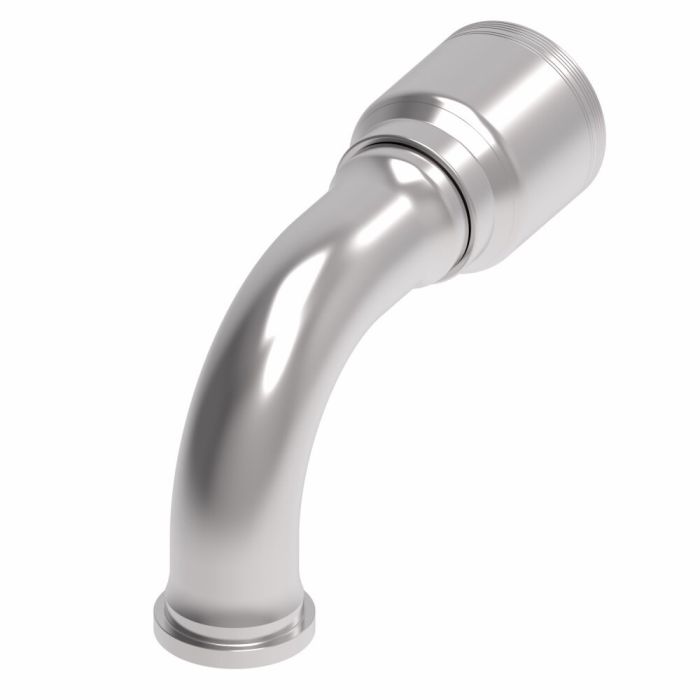

Split Flange Code 61 90°

Description & Features

This Split Flange Code 61 90 from Danfoss Power Solutions offers superior performance with a robust design. It is engineered to extend the life of hose assemblies ensuring reliability in demanding applications. The fitting is crafted from high-quality carbon steel and features Dura-Kote plating providing exceptional corrosion resistance.

Designed under SAE J1176 certification this Eaton Aeroquip 6-Wire Spiral TTC Fitting guarantees compatibility and safety. The flange end type and line/hose/tube connectivity make it versatile for diverse industrial uses. It has dimensions of 5.4300 drop and 3.56 width fitting hose dash size -32.

Innovatively built to maximize uptime this Split Flange Code 61 90 fitting is a critical component for efficient fluid power systems. Note that it requires no battery calibration case or mandrel for operation. This part is not machine mountable and does not include a check valve or electrical components.

Supplier Part Number: 6S32FLB32

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 9.85 in	Compatible Hose ID 2 in	Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 6.78 in	Dimension Standards SAE J1176	Dimensions 11.26 in L x 3.56 in W x 7.21 in H	Drop Dimensions 5.43 in	End Size 1 32	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hose Dash Size 32	Inside Diameter 1.66 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 6S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (2)

Question by: Judy A on Nov 30, 2025, 4:54 PM

got a hose setup that takes a -32, is this the right dash size on the hose end?

Answer by: Customer Support on Dec 2, 2025, 11:24 AM

The hose dash size on this fitting is -32, and it uses a flanged end on one side with a line, hose, or tube connection on the other.

Question by: Harold G on Apr 21, 2025, 8:22 PM

does this fitting work with -32 hose, or do i need a different size for that big of a line?

Answer by: Customer Support on Apr 23, 2025, 12:09 PM

For -32 hose, you're in the right place. The 6S32FLB32 is built specifically for dash size -32, so it mates directly with that hose size without any adapters in between. The flange end connects to Code 61 flanged ports, and the other end ties into your hose or tube assembly. Pretty straightforward fit for a large-bore line.
