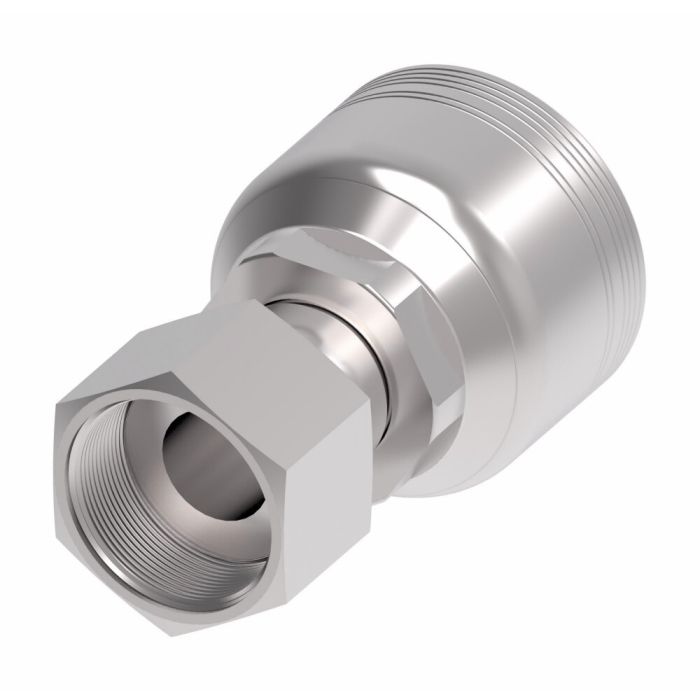

Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting

Description & Features

Designed for use with 6-wire spiral hose, this carbon steel crimp fitting from Eaton Aeroquip features a female swivel ORS end configuration on a -16 hose dash size. The Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting is built to SAE J1176 certification standards, making it a reliable choice for demanding hydraulic hose assembly applications.

Dura-Kote plating provides corrosion resistance suited to harsh industrial environments. The system-engineered design is intended to extend hose assembly service life and support consistent performance under high-pressure conditions. With a 1.625-inch hex size on the line end and a package weight of 2.4 lb, this fitting is a practical component for mobile and industrial hydraulic circuits.

SKU: 6SA16FR16

Supplier Part Number (MPN): 6SA16FR16

Alternate Part Numbers: MI-08473948, MINO-00015X01566

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.24 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Crimp	Cut-Off Factor 1.68 in	Dimension Standards SAE J1176	Dimensions 3.24 in L	End Connection Torque 92 to 100 lb-ft	End Gender 1 Female	End Size 1 16	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hex Size 1-5/8	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code C	Series 6S Series	Thread Sealant Without Thread Sealant	Thread Size 1-7/16-12	Thread Type UN

Product Questions & Answers (4)

Question by: Bonnie J on Jan 14, 2026, 12:43 PM

we get a lot of moisture around the yard and my steel fittings keep rusting out fast. does this one have any kind of coating to help with that?

Answer by: Customer Support on Jan 15, 2026, 5:18 PM

Carbon steel construction is standard for these but Danfoss added a Dura-Kote plating specifically for superior corrosion resistance. That extra layer helps extend the overall life of the hose assembly and keeps the metal protected in damp environments.

Question by: Cody B on Aug 26, 2025, 9:25 PM

fitting's got Dura-Kote plating on it -- does that actually hold up in wet or outdoor environments, or is that more of a marketing thing?

Answer by: Customer Support on Aug 28, 2025, 6:41 AM

Carbon steel fittings without any surface treatment rust fast when exposed to moisture, so the Dura-Kote plating on this one is doing real work. It's specifically there to give you better corrosion resistance than a standard uncoated fitting would offer. For outdoor equipment or anything running in damp conditions, that coating makes a meaningful difference in how long the fitting holds up before showing wear.

Question by: Diane P on Jun 19, 2025, 6:32 PM

trying to match up a hose end, is 6SA16FR16 a female swivel ORS for a -16 hose?

Answer by: Customer Support on Jun 21, 2025, 11:32 AM

For fitment, 6SA16FR16 is a 6S Series crimp hose fitting with a female swivel ORS end, and it is sized for a -16 hose dash.

Question by: Cheryl T on Nov 21, 2025, 2:34 PM

So this fitting's got that Dura-Kote stuff, right? How much better is it against rust compared to regular steel?

Answer by: Customer Support on Nov 23, 2025, 1:07 PM

Dura-Kote plating delivers superior corrosion resistance, helping extend the fitting's life, especially in harsh environments.
