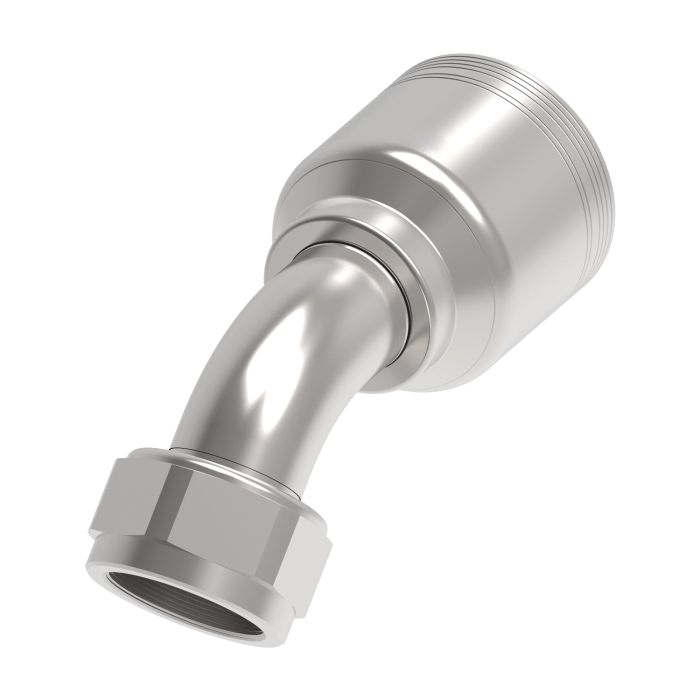

DANFOSS / EATON 6WIRE #20 FJIC 45*X #20 HOSE

Description & Features

This carbon steel fitting assembly features a female JIC 37 end and a -20 hose dash size. The DANFOSS / EATON 6WIRE #20 FJIC 45*X #20 HOSE is engineered to extend hose assembly life and offers an innovative design for optimal performance and maximum uptime.

This fitting assembly has Dura-Kote plating for superior corrosion resistance and meets SAE J1176 standards.

SKU: 6SA20FJA20

Supplier Part Number (MPN): 6SA20FJA20

Alternate Part Numbers: MI-07223067, MINO-00925F18519

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5.37 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female 37 deg JIC Swivel	Construction Style Crimp	Cut-Off Factor 3.17 in	Dimension Standards SAE J1176	Dimensions 7.01 in L x 2.61 in W x 4.2 in H	Drop Dimensions 1.26 in	End Gender 1 Female	End Size 1 20	Finish Dura-Kote™	Fitting Type 45 deg Elbow	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hex Size 2 in	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 6S Series	Thread Sealant Without Thread Sealant	Thread Size 1-5/8-12	Thread Type UN

Product Questions & Answers (1)

Question by: Bobby F on Aug 4, 2025, 8:25 AM

What size is that JIC fitting on this hose?

Answer by: Customer Support on Aug 6, 2025, 6:34 AM

This fitting assembly uses a #20 female JIC 37 end.
