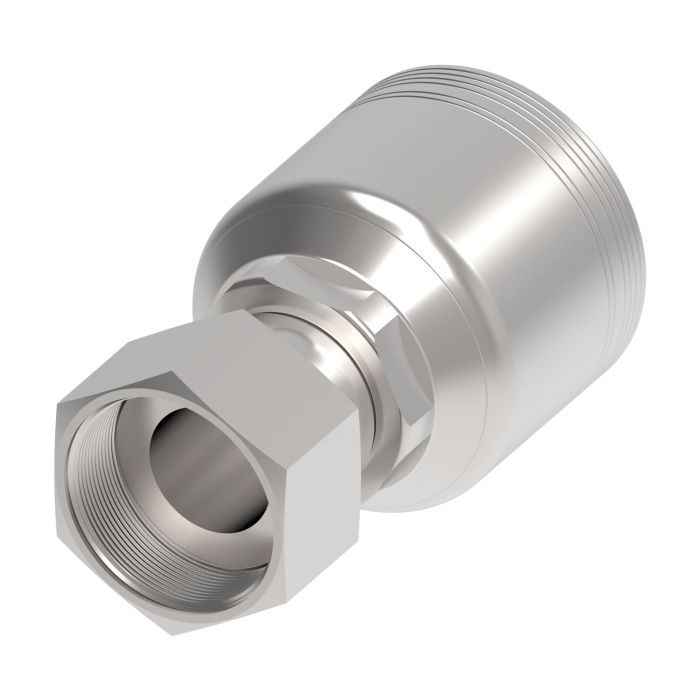

Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting

Description & Features

The Danfoss / Eaton Aeroquip 6-Wire Spiral TTC Fitting offers robust performance across various industrial applications. Engineered with an innovative design it ensures system durability and maximum uptime.

Constructed from carbon steel this fitting features Dura-Kote plating to provide superior corrosion resistance. Designed for extended hose assembly life it meets SAE J1176 industry standards.

Specifically tailored for the Danfoss / Eaton 6S Series this crimp hose fitting includes a female swivel ORS end type and is compatible with 1.875 hex size hose.

ECCN: EAR99

Supplier Part Number: 6SA20FR20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.93 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Crimp	Cut-Off Factor 1.72 in	Dimension Standards SAE J1176	Dimensions 4.5 in L x 2.61 in W x 2.61 in H	End Gender 1 Female	End Size 1 20	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With FC500, F273B, EC810, EC600, FC606, GH466, EC850 and EC420 Series Hoses	Hex Size 1.875 x 1.813 in	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 6S Series	Thread Sealant Without Thread Sealant	Thread Size 1-11/16-12	Thread Type UN

Product Questions & Answers (1)

Question by: Duane P on Jan 30, 2026, 6:48 AM

Will this fitting hold up to high pressure in hydraulic systems, or do I need something beefier?

Answer by: Customer Support on Jan 31, 2026, 3:08 PM

Dura-Kote plating gives this carbon steel fitting superior corrosion resistance, and the design extends the hose assembly's life, so it's built to withstand tough conditions.
