Aeroquip Fitting (Perm) 6-SPRL

Description & Features

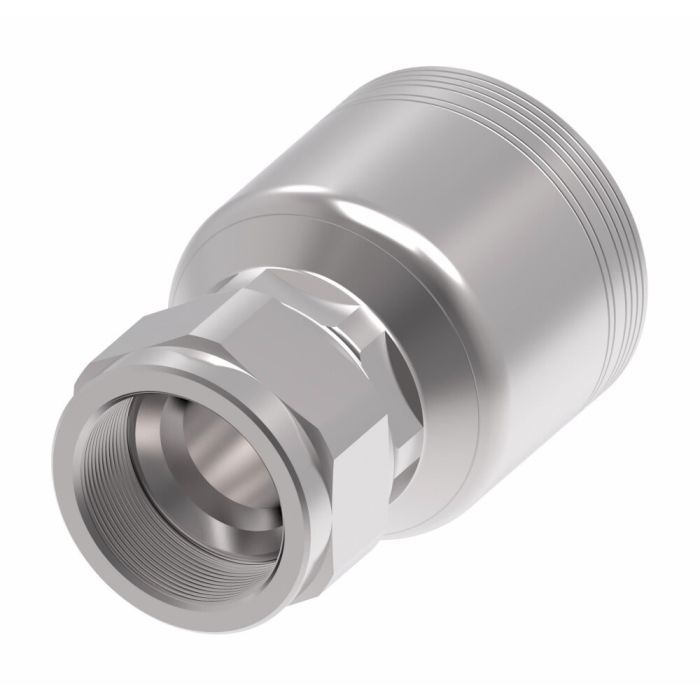

This Aeroquip Fitting is a 6S Series crimp hose fitting with a female JIC/37 swivel end. Constructed from carbon steel, this fitting assembly is SAE J1176 certified and features Dura-Kote plating, providing superior corrosion resistance and extending hose assembly life.

Engineered for performance and maximum uptime, this female fitting has a -20 hose dash size and a 1.8125 inch hex size 2. It connects to a JIC 37 female end and is designed for line/hose/tube connections.

SKU: 6SA24FJ20

Supplier Part Number (MPN): 6SA24FJ20

Alternate Part Numbers: MI-07223151, MINO-00925F19727

Specifications

Alternate Part Numbers Alternate Part Number MI-07223151, Alternate Part Number MINO-00015X07734, Alternate Part Number MINO-00925F19727	Certifications SAE J1176	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Type 1 JIC 37	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hex Size 2 1.81	Hose Dash Size -20	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.61	Sub Brand None	Supplier Part Number 6SA24FJ20	Product Weight 2.11 lbs

Product Questions & Answers (1)

Question by: Jimmy A on Mar 2, 2026, 10:24 AM

reckon this fitting is gonna hold up alright in a hydraulic setup that sees some pretty rough use?

Answer by: Customer Support on Mar 4, 2026, 6:03 AM

Dura-Kote plating is applied to provide enhanced corrosion resistance and extend the life of the hose assembly, even under demanding conditions.
