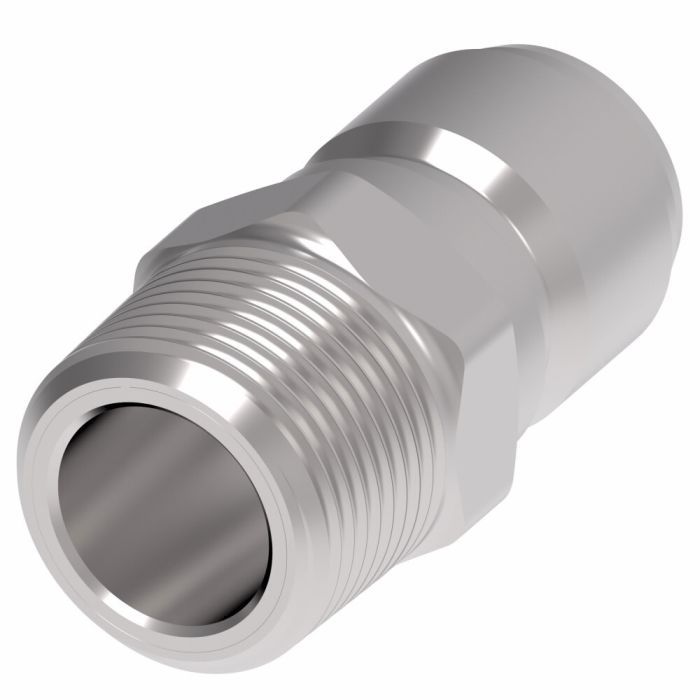

This Aeroquip/Eaton Hansen ST Series coupling plug is a male half designed for quick connection and disconnection in fluid transfer systems. It eliminates the need for special tools, simplifying installation and maintenance.
Constructed from carbon steel with Buna-N seals, this plug is suitable for various applications, including chemical, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning. The internal ball lock connection ensures a secure and reliable seal. With a flow rate of 66 gallons per minute, the CPLING ST Series M. Half -12X3/4MP exceeds ISO 16028 operating pressures and can function in temperatures as low as -40 degrees.
SKU: 6T30
Supplier Part Number (MPN): 6T30
|
Alternate Part Numbers
MINO-00015X07742
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 2
0.75
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
66 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/4
|
Product Material
Carbon Steel
|
Product Width
1.23
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
6T30
|
Valve Type
Straight Thru
|
Product Weight
0.22 lbs
|
