12MJ-08MBSPT Straight Stnls

Description & Features

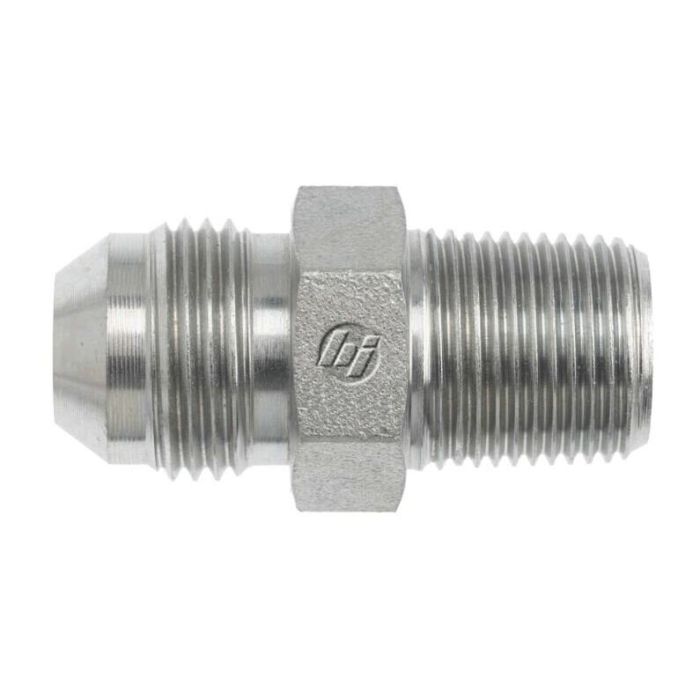

Manufactured from stainless steel, this straight hydraulic fitting connects a 1-1/16-12 Male JIC SAE 37° Flare (SAE J514) on one end to a 1/2-14 Male Bspt (R) thread conforming to ISO 7-1 on the other. The straight configuration makes it well suited for direct inline connections where routing space allows a compact, non-angled transition between JIC and Bspt threaded components.

The 12MJ-08MBSPT Straight Stnls is part of Brennan Industries' Series 7000 and is built from stainless steel, offering reliable corrosion resistance for demanding fluid power and industrial applications. California residents should note that this product is subject to a Proposition 65 warning.

SKU: 7000-12-08-SS

Supplier Part Number (MPN): 7000-12-08-SS

Specifications

Connection Size 1 3/4 in	Connection Size 2 1/2 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male BSPT 30 deg	Dimension Standards ISO 7-1, SAE J514	Dimensions 2.06 in L	Fitting Type Adapter	Hex Size 1.06 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Maximum Operating Pressure 4500 psi	Series 7000 Series	Thread B1 Drill Dimensions 15.5 mm	Thread B2 Drill Dimensions 13.5 mm	Thread Size 1-1/16-12 x 1/2-14

Product Questions & Answers (1)

Question by: Todd M on Sep 9, 2025, 6:08 AM

So this here fitting, it's gonna hold up if it gets some spray from de-icing salts and whatnot?

Answer by: Customer Support on Sep 10, 2025, 6:07 PM

Being made from stainless steel, this fitting offers reliable corrosion resistance, which makes it suitable for demanding fluid power applications where exposure to things like road salts is possible.
