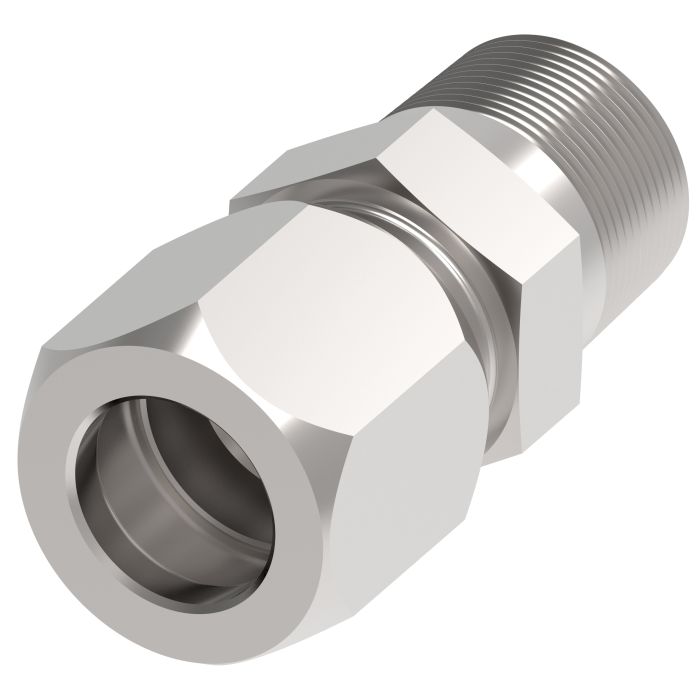

7000 Series Ermeto Steel Flareless Fitting, 0.31 Inch Tube OD To 1/4-18 Male NPT, Straight

Description & Features

The Danfoss / Eaton Ermeto Male Connector offers exceptional performance in demanding hydraulic instrumentation and chemical processing systems.

This high-pressure fitting is constructed from AISI/SAE 12L14 carbon steel with an exclusive Weathercotereg; finish ensuring optimal resistance to nonflammable hydraulic fluids. Designed for use with aluminum hard or half copper steel stainless steel and extra heavy wall tubing that cannot be flared it meets ASA ASME and SAE specifications.

With an operating temperature range of -65deg;F to +400deg;F at maximum pressures and tested up to 800deg;F and 1000-4000 psi this fitting is highly reliable. It also provides excellent vibration resistance making it suitable for high-pressure applications.

The 7000 Series Ermeto Steel Flareless Fitting 0.31 Inch Tube OD To 1/4-18 Male NPT Straight eliminates the need for tube flaring when used with extra heavy wall tubing available in a broad selection of sizes and styles.

MPN: 7205X5X4

Supplier Part Number: 7205X5X4

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 5/16 in	Connection Size 2 1/4 in	Connection Type MNPT	Connection Type 1 Male NPTF	Connection Type 2 Male NPTF	Dimension Standards SAE 080102	Dimensions 0.234 in ID x 1.32 in L	Finish Dura-Kote™	Fitting Type Connector	Hex Size 9/16 x 5/8 in	Material Steel	Material Construction Carbon Steel	Series 7205X Series	Thread Sealant Without Thread Sealant	Thread Size 1/4-18

Similar Products

Model Number	Tube O.D.	Thread Size	L
7205X8X8 7000 Series Ermeto Steel NPT Fitting	0.5	1/2-14	1.69
7205X10 7000 Series Ermeto Steel NPT Fitting	0.63	1/2-14	1.75
7205X12 7000 Series Ermeto Steel NPT Fitting	0.75	1/2-14	1.88
7205X4 7000 Series Ermeto Steel NPT Fitting	0.25	1/8-27	1.12
7205X4X4 7000 Series Ermeto Steel NPT Fitting	0.25	1/4-18	1.32
7205X6 7000 Series Ermeto Steel NPT Fitting	0.38	1/4-18	1.34
7205X6X6 7000 Series Ermeto Steel NPT Fitting	0.38	3/8-18	1.35
7205X8 7000 Series Ermeto Steel NPT Fitting	0.5	3/8-18	1.44
