05MJ-12MM ORR STRAIGHT. ORING/RET RING

Description & Features

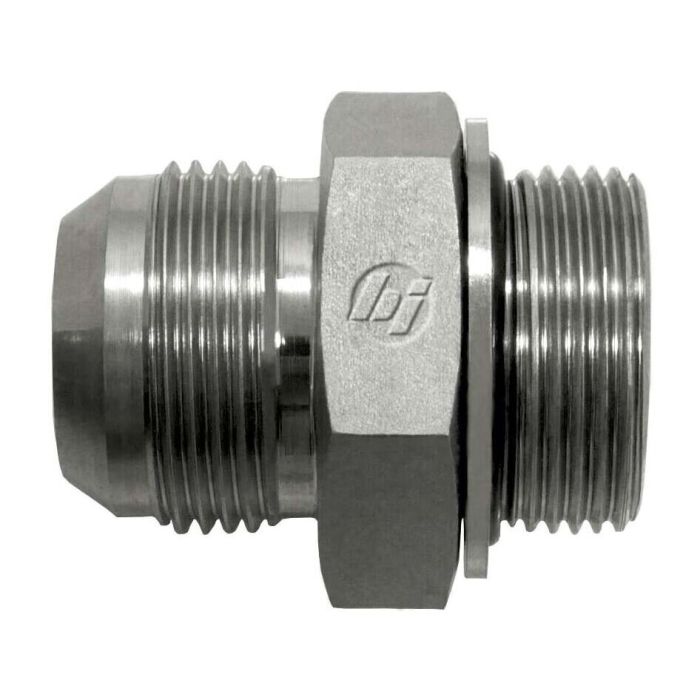

A straight steel adapter fitting designed to connect Male JIC SAE 37° Flare (1/2-20, SAE J514) to Male Metric O-Ring and Retaining Ring (M12x1.5, ISO 9974 port), the 05MJ-12MM ORR Straight. ORing/Ret Ring from Brennan Industries provides a reliable cross-standard transition in hydraulic line assemblies. The NBR O-ring seal material delivers dependable fluid containment across a broad range of petroleum-based hydraulic fluids.

Manufactured from straight steel, this fitting is well suited for hydraulic circuits where a JIC flare end must mate with a metric O-ring face seal port. The retaining ring design helps secure the O-ring during assembly, supporting consistent sealing performance. California residents should note this product is subject to Proposition 65 requirements.

SKU: 7001-05-12

Supplier Part Number (MPN): 7001-05-12

Specifications

Brand BRENNAN	Connection Size 1 5/16 in	Connection Size 2 12 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male Metric O-ring	Dimension Standards SAE J514	Dimensions 33 mm L	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 3/4 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series 7001-ORR Series	Thread Size 1/2-20 x M12x1.5	Thread Specification B2 For ISO 9974 Port

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
7001-04-10	1/4 in	10 mm	7/16-20, M10x1	0.55 in
7001-06-12	3/8 in	12 mm	9/16-18 x M12x1.5	11/16 in
7001-06-16	3/8 in	S16	9/16-18 x M16x1.5	0.87 in
7001-06-18	3/8 in	18 mm	9/16-18 x M18x1.5	0.94 in
7001-08-16	1/2 in	S16	3/4-16 x M16x1.5	0.87 in
7001-08-18	1/2 in	18 mm	M18x1.5 x 3/4-16	24 mm
7001-08-22	1/2 in	22 mm	M22x1.5 x 3/4-16	27 mm
7001-10-20	5/8 in	20 mm	7/8-14 x M20x1.5	27 mm
7001-10-22	5/8 in	22 mm	7/8-14 x M22x1.5	1.06 in
7001-12-22	3/4 in	22 mm	1-1/16-12 x M22x1.5	1.06 in
7001-12-26	3/4 in		1-1/16-12 x M26x1.5	1.26 in
7001-12-27	3/4 in		1-1/16-12, M27x2	32 mm
7001-16-33	1 in		1-5/16-12, M33x2	41 mm

Product Questions & Answers (1)

Question by: Harold J on Apr 26, 2025, 9:58 PM

Will this fitting work to adapt a JIC flare to a metric O-ring port?

Answer by: Customer Support on Apr 28, 2025, 6:02 AM

Absolutely, this straight steel adapter is designed for that specific purpose, connecting a Male JIC SAE 37° Flare to a Male Metric O-Ring and Retaining Ring (M12x1.5, ISO 9974 port).
